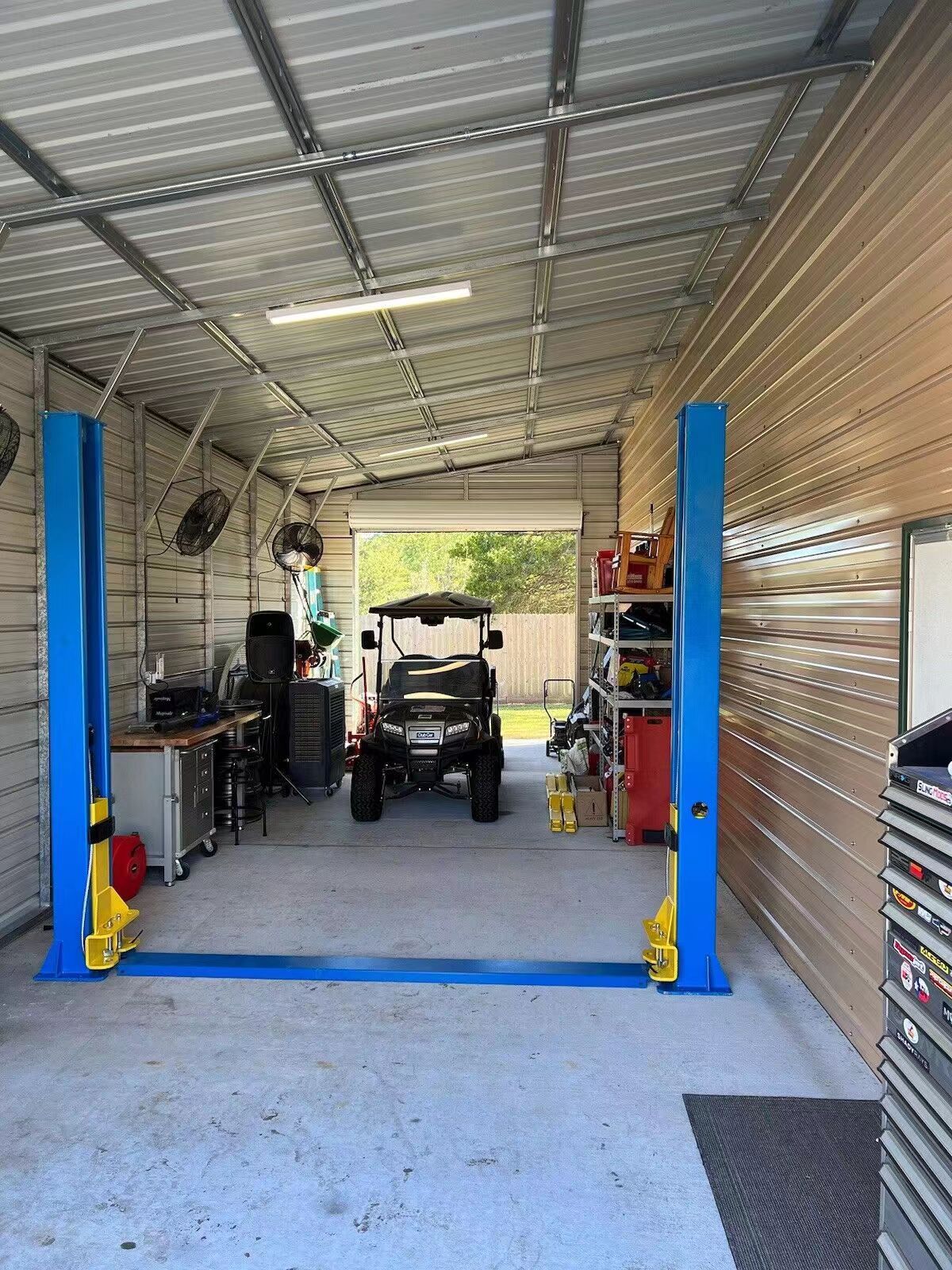

Experience the ultimate in lifting performance with the KT-H105 Two-Post Vehicle Lift. Designed with professionals in mind, this robust lift offers a 10,000 lbs (4,500 kg) lifting capacity and cutting-edge safety features, making it an ideal choice for auto shops and serious home garages. The KT-H105 combines strength, durability, and versatility to handle everything from compact sedans to large SUVs with ease.

Key Features for Superior Performance

• Powerful Lifting Capacity: With the ability to lift up to 10,000 lbs, this lift is ready for even the heaviest vehicles.
• CE Certified for Safety: Rigorously tested to meet 115% of its dynamic loading capacity and 150% of its static loading capacity for uncompromising reliability.
• Dual Hydraulic Chain-Drive Cylinders: Ensures smooth and consistent lifting action for maximum efficiency.
• Manual Safety Release: Accessible from both sides for effortless and secure operation.

Innovative Design and Safety Features

• Base Plate Design: Compact and stable, ideal for spaces where overhead clearance is a concern.
• Rubber Door Pad Protection: Prevents accidental scratches or damage to vehicle doors during lifts.
• Screw-On Pad and Extension Adaptors: Includes +100mm adaptors for greater flexibility when accommodating different vehicle heights.
• Extended Arm Reach: Adjustable front and rear arms provide maximum versatility, making it easy to position vehicles of various sizes.

Specifications at a Glance

• Lifting Height: 3.9" (100 mm) minimum to 70.8" (1,800 mm) maximum.
• Drive-Thru Clearance: Spacious 98.4" (2,500 mm) to accommodate larger vehicles.
• Overall Height and Width: 110.9" (2,818 mm) tall and 140.4" (3,565 mm) wide.
• High-Performance Hydraulic System: Powered by a 220VAC/60HZ/1PH motor for reliable operation.
• Net Weight: 570 kg for a durable and sturdy build.

Concrete and Installation Requirements

For safe installation, ensure a minimum concrete thickness of 5.9" (150 mm) with a 3,000 PSI rating. Failure to meet these requirements can result in serious injury or damage. Customers are responsible for verifying their concrete meets these standards before purchasing and installing the lift.

Shipping Information

• Freight Shipping Only: Available within the lower 48 states.
• Shipping Fee: $590 per lift for commercial addresses (additional charges may apply for residential or remote areas).
• Unloading Requirements: Customers must arrange for unloading with a forklift or dock service.
• Delivery Inspection: Carefully inspect the lift upon arrival and report any damages on the Bill of Lading or Delivery Receipt before signing.

The KT-H105 Two-Post Vehicle Lift combines precision engineering, safety, and power to elevate your vehicle servicing needs. Whether you’re managing a high-traffic garage or outfitting your personal workshop, the KT-H105 delivers the performance and reliability you can count on.

Upgrade your workspace with the KT-H105 today and get the job done right!
