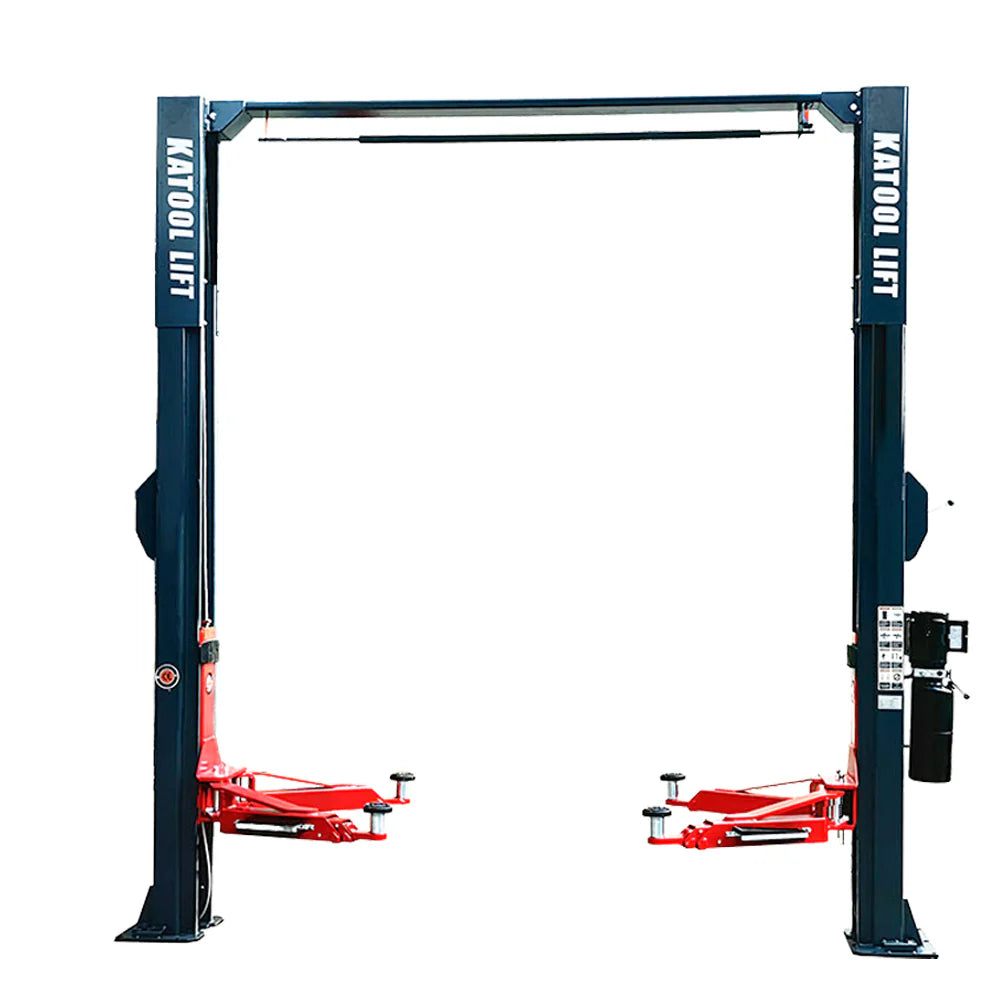

The KT-AS110D Two-Post Asymmetrical Vehicle Lift combines durability, efficiency, and advanced safety features, making it a must-have for professional automotive workshops and home garages. With an impressive lifting capacity of 11,000 lbs, it’s designed to handle everything from sedans to light trucks with ease.

Key Features:

• Exceptional Lifting Capacity: Handles up to 11,000 lbs (4,990 kg), perfect for a wide range of vehicles.
• CE Certified for Safety: Tested to 115% dynamic and 150% static load standards for reliability and peace of mind.

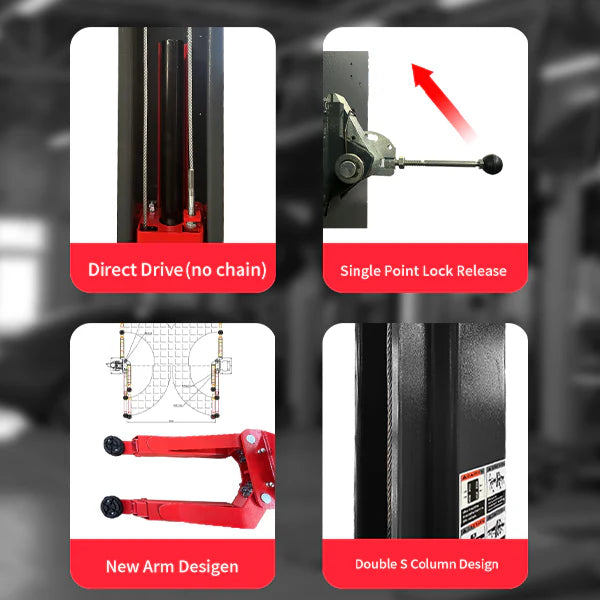

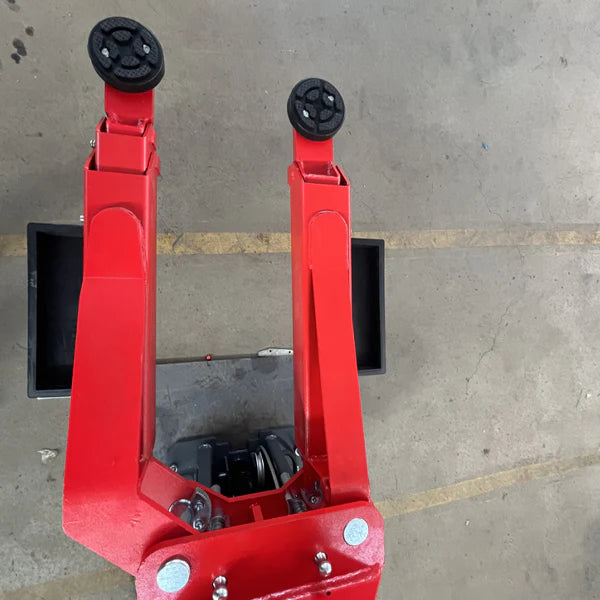

• Asymmetrical Arm Design: Provides superior access to vehicle interiors and doors during maintenance.

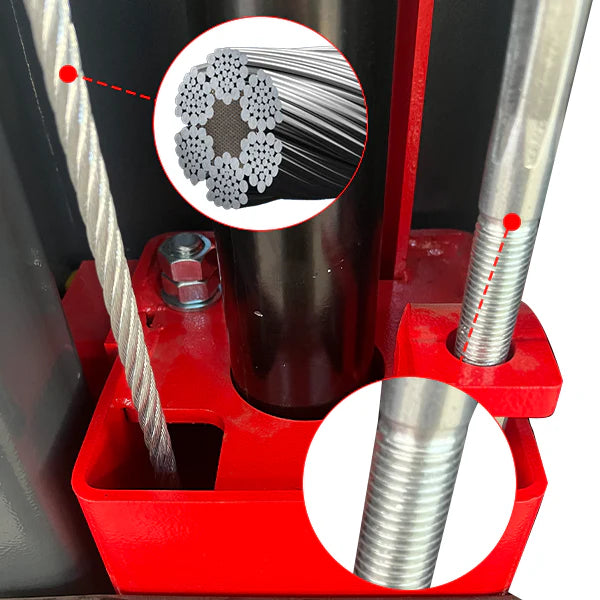

• Direct Drive Cylinders: Enhances performance with minimal maintenance needs.

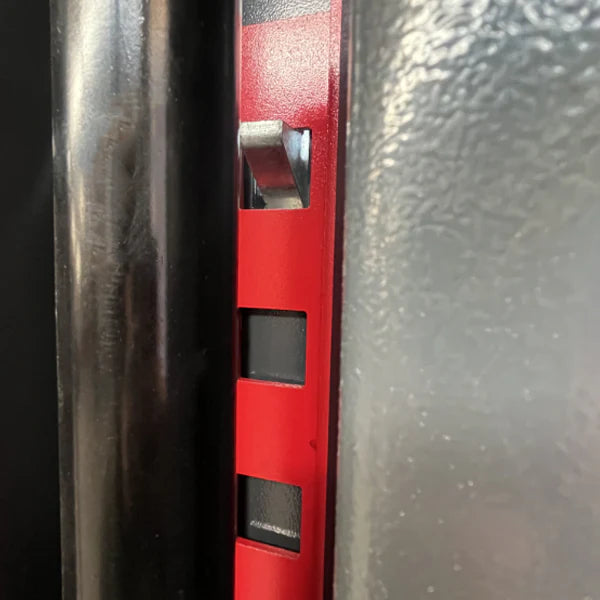

• Advanced Safety Mechanisms:
  • Single-point lock release for effortless operation.
  • Overhead safety shutoff bar to prevent accidental lift overrun.
  • Feet-protection safety guardrails with a built-in toolbox for convenience.
• Rubber Pad Door Protection: Prevents accidental damage to vehicle doors.

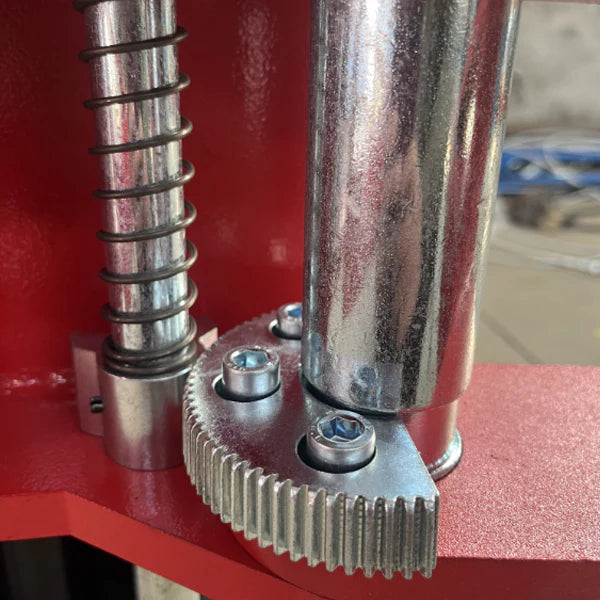

• Adjustable Support Adaptors: Extendable adaptors ranging from 3.94 inches to 6 inches accommodate a variety of vehicles.
• Compact and Efficient Design:
  • Minimum height of 3.74" (95 mm) for low-clearance vehicles.
  • Drive-thru clearance of 99.61" (2,530 mm) for easy vehicle entry and exit.
• High-Quality Hydraulic System: Equipped with a robust motor available in 220V or 110V options.

Specifications:

• Lifting Capacity: 11,000 lbs (4,990 kg)

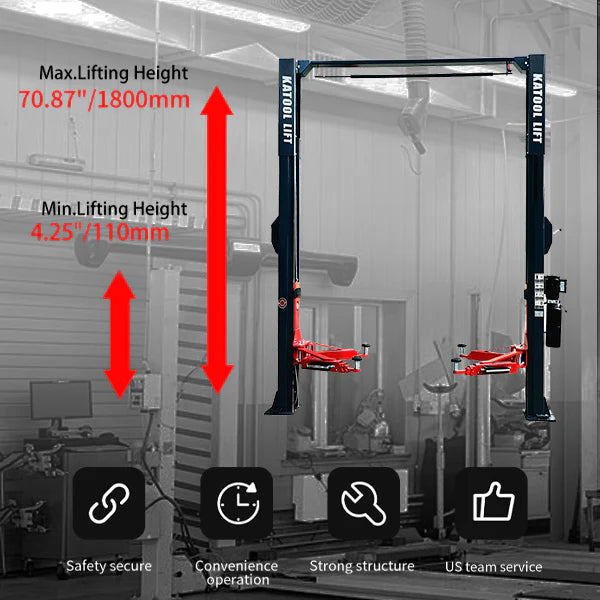

• Max Lifting Height: 70.75" (1,800 mm)
• Min Height: 3.74" (95 mm)
• Height Overall: 141.25" (3,587 mm)
• Width Overall: 134.65" (3,420 mm)
• Inside Columns Width: 109.37" (2,778 mm)
• Drive-Thru Clearance: 99.61" (2,530 mm)
• Motor: 220VAC/60HZ/1PH (Optional: 110V)

Installation Requirements:

• Concrete Specifications: Must be at least 5.9" (150 mm) thick with a 3,000 PSI rating. Proper installation is critical for safe operation. Customers must verify concrete specifications before purchase.

Shipping Policy:

• Freight Shipping: Available within the lower 48 states.
• Shipping Fee: $590 per piece to commercial addresses. Extra charges may apply for remote or residential areas.
• Unloading Responsibility: Buyers must arrange for unloading via forklift or dock services. The shipping carrier does not handle unloading.
• Inspection on Delivery: Inspect the product upon delivery and note any damages on the Bill of Lading or Delivery Receipt. Claims cannot be processed if damages are not noted at delivery.

Upgrade your garage or workshop with the KT-AS110D Two-Post Vehicle Lift for reliable, safe, and efficient vehicle maintenance. Contact us today to place your order or confirm shipping details!
