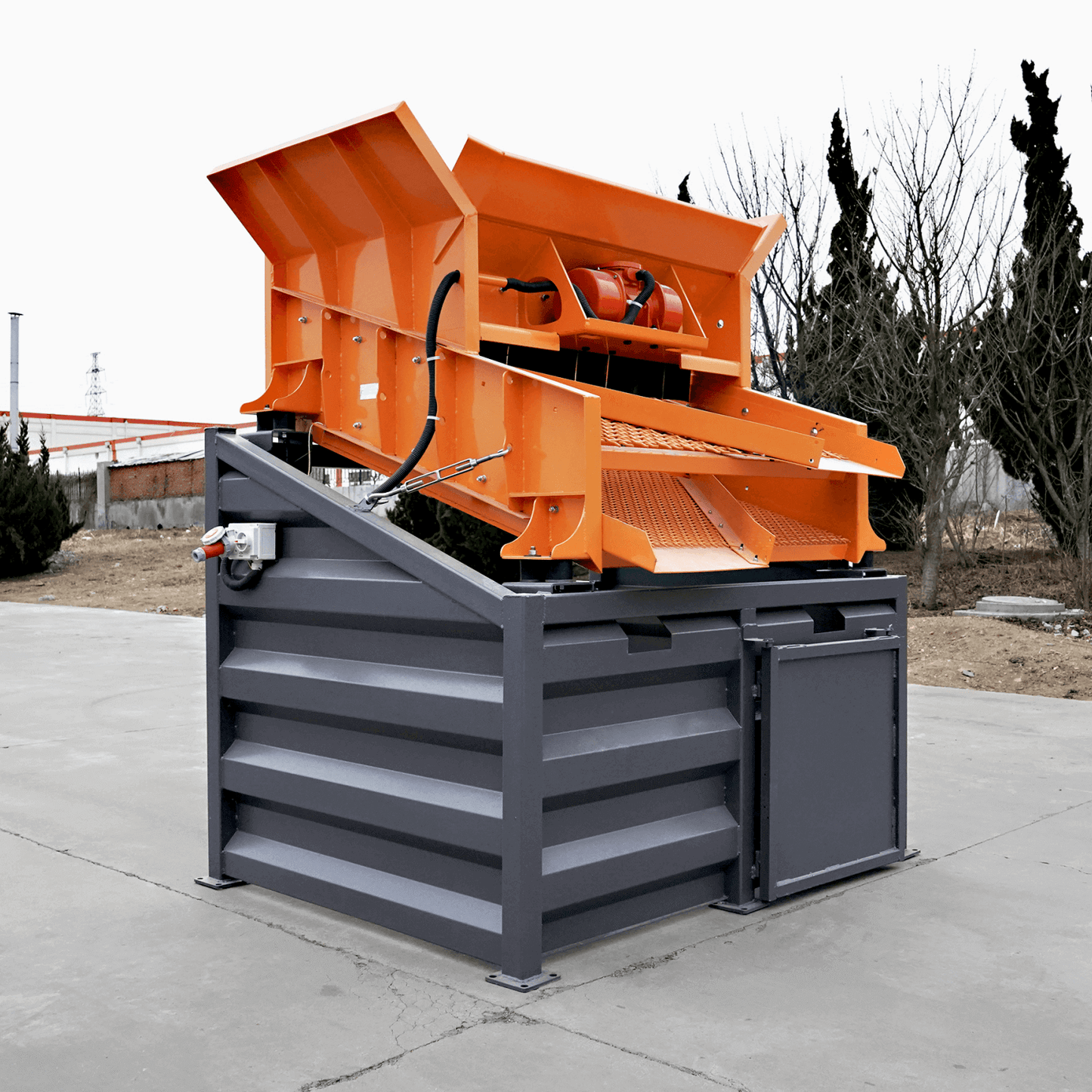

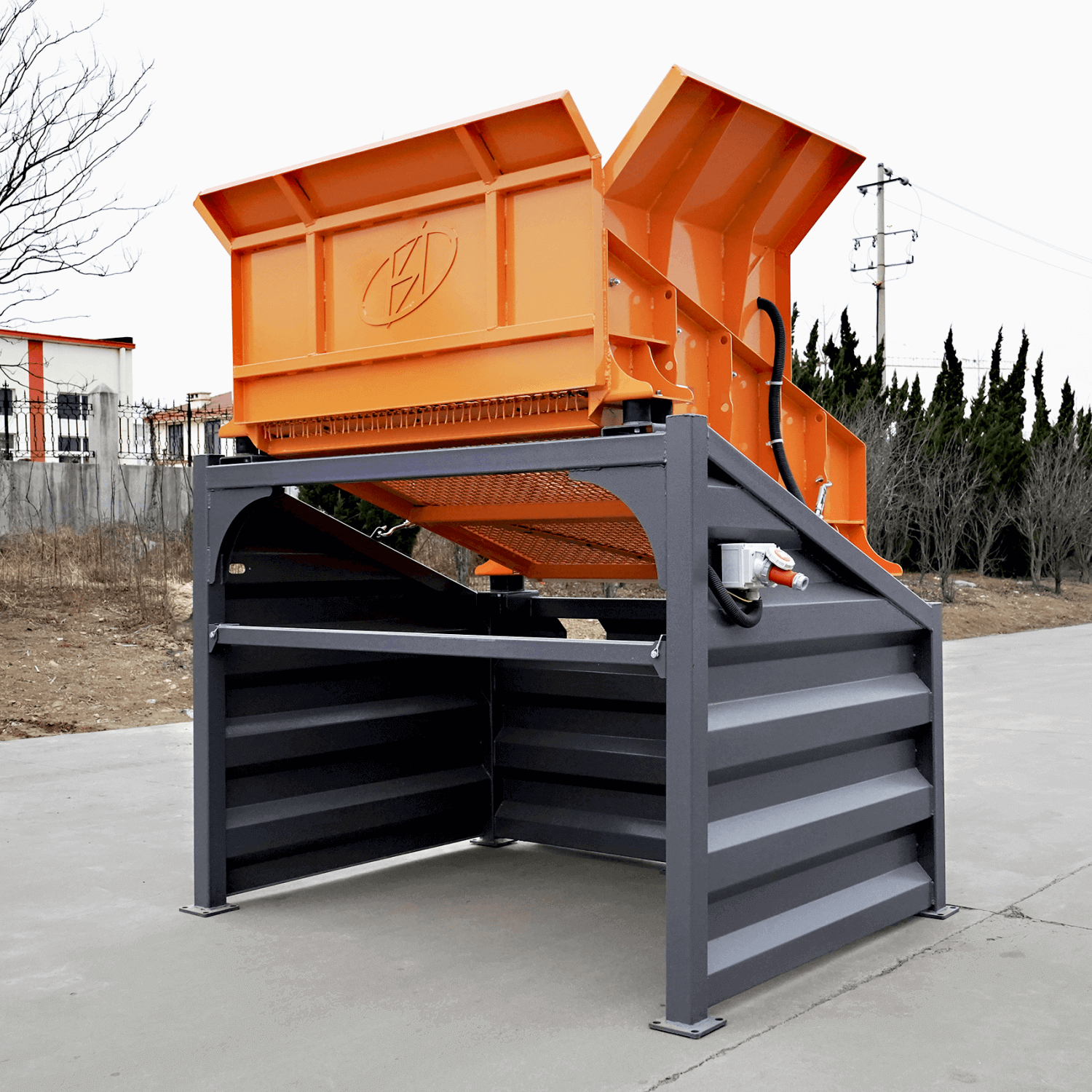

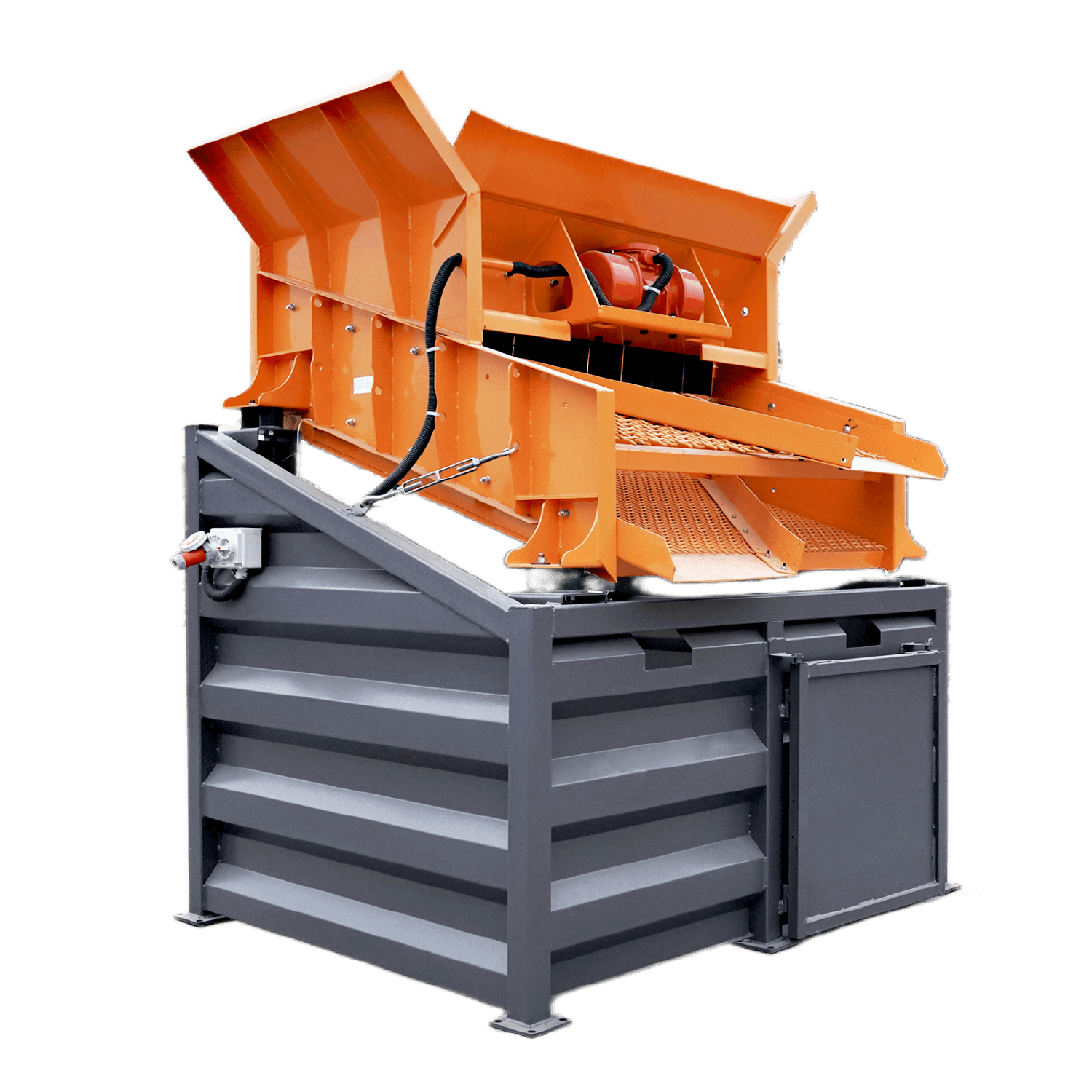

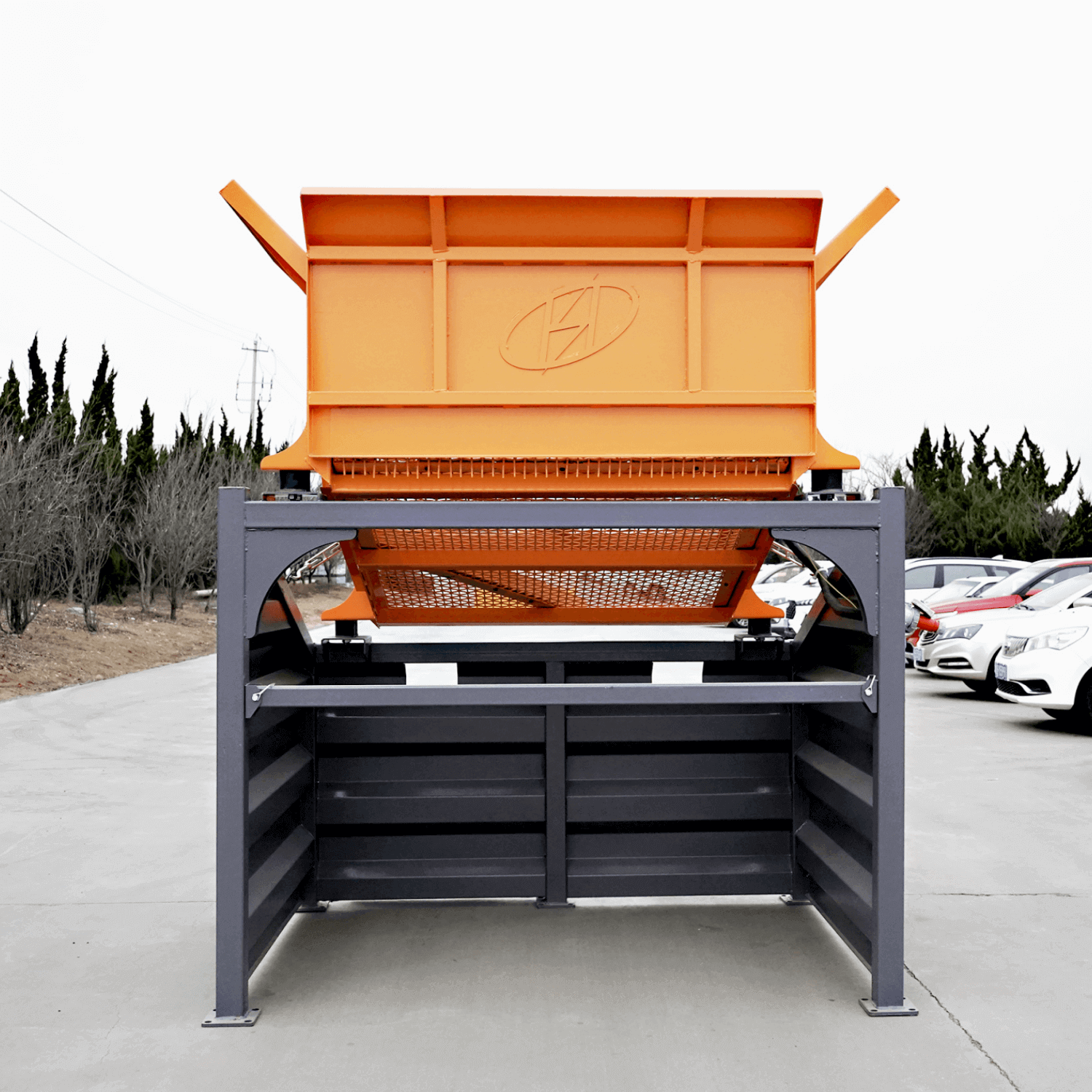

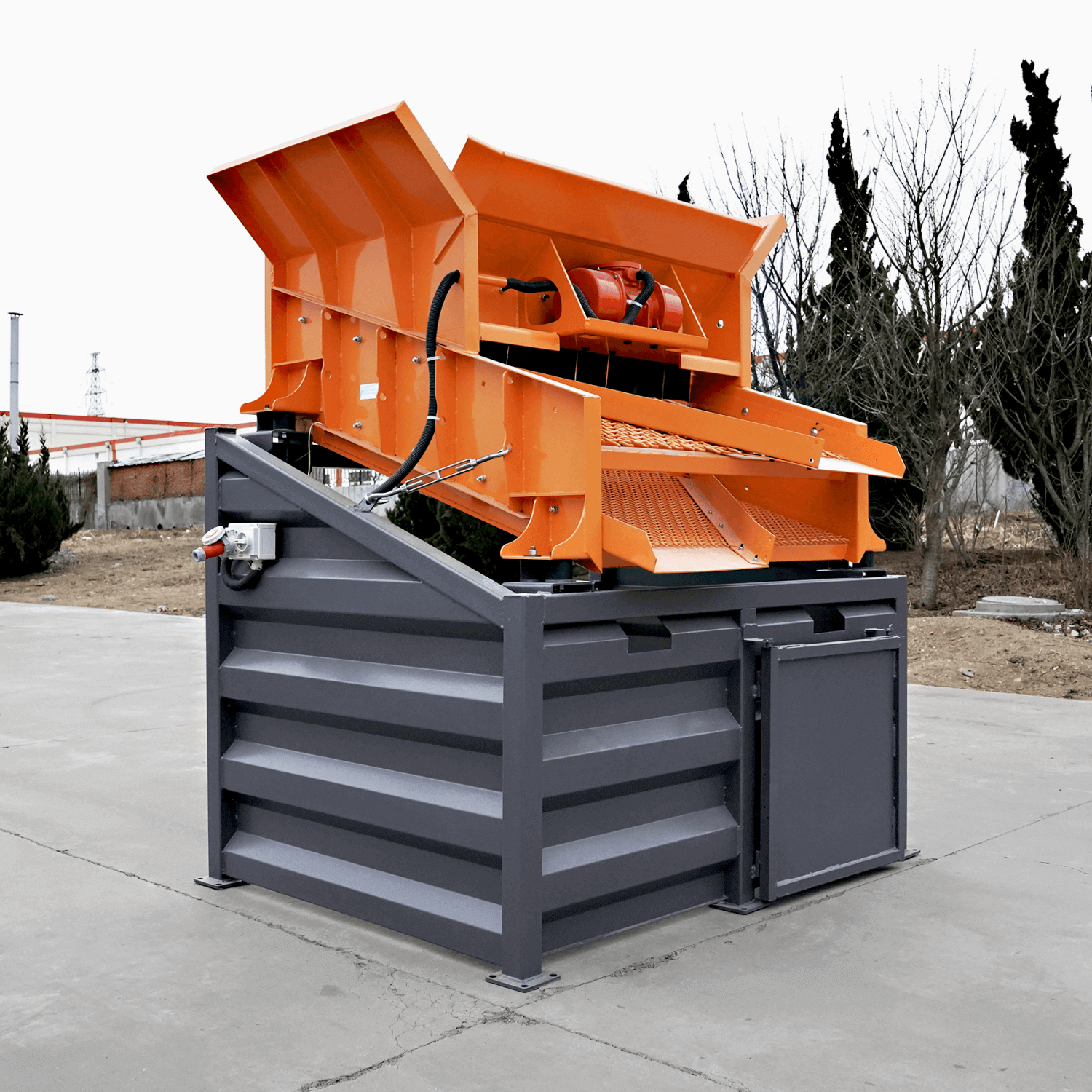

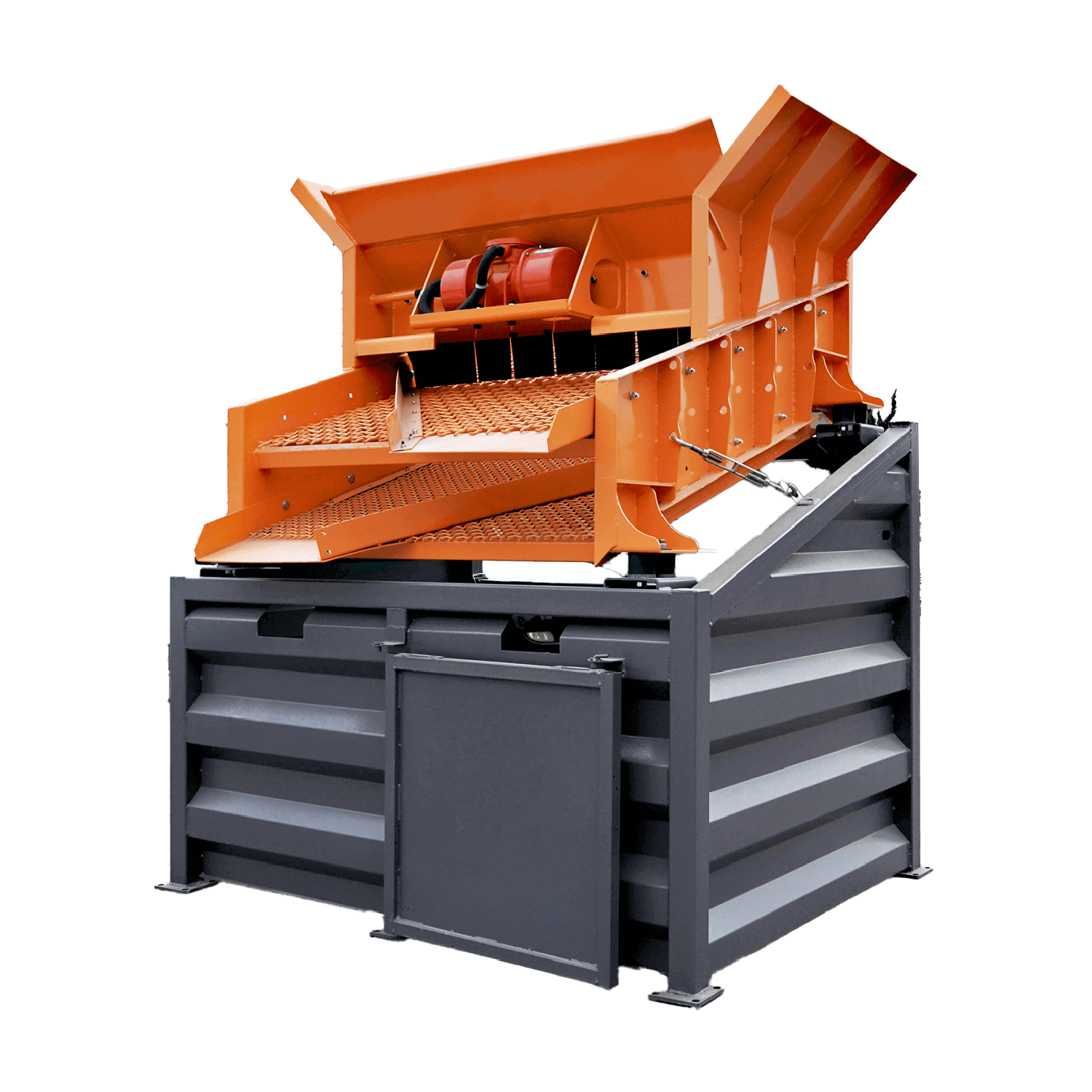

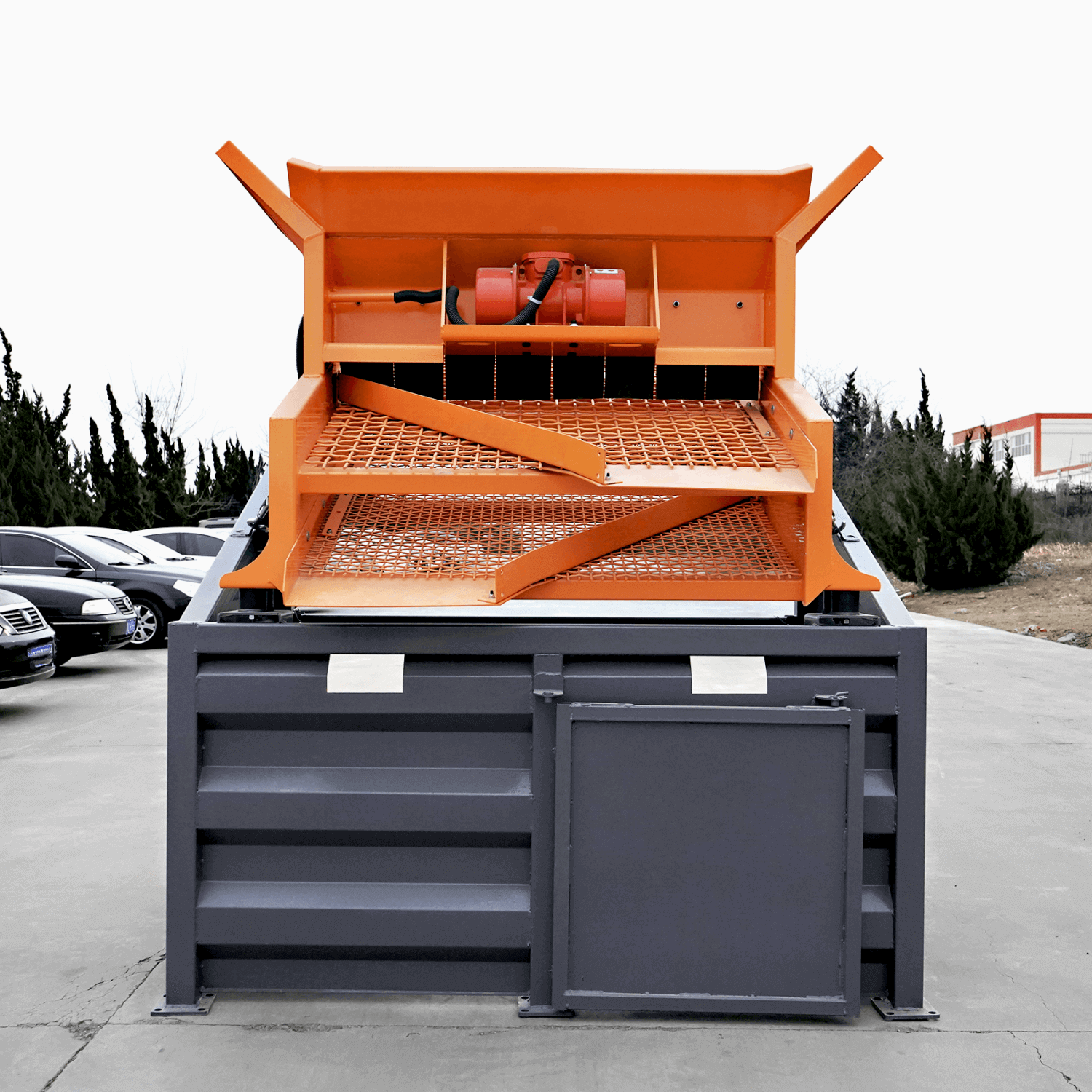

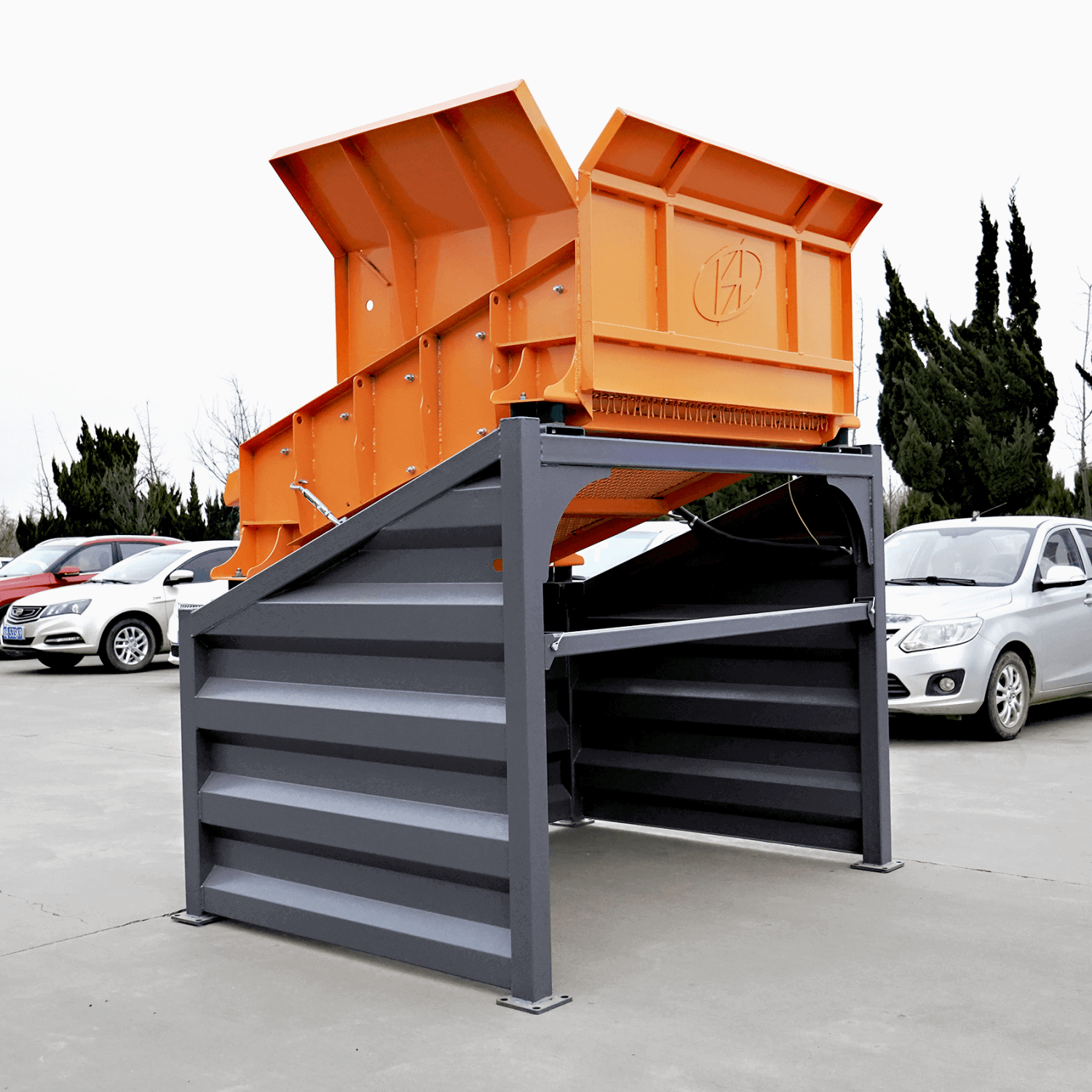

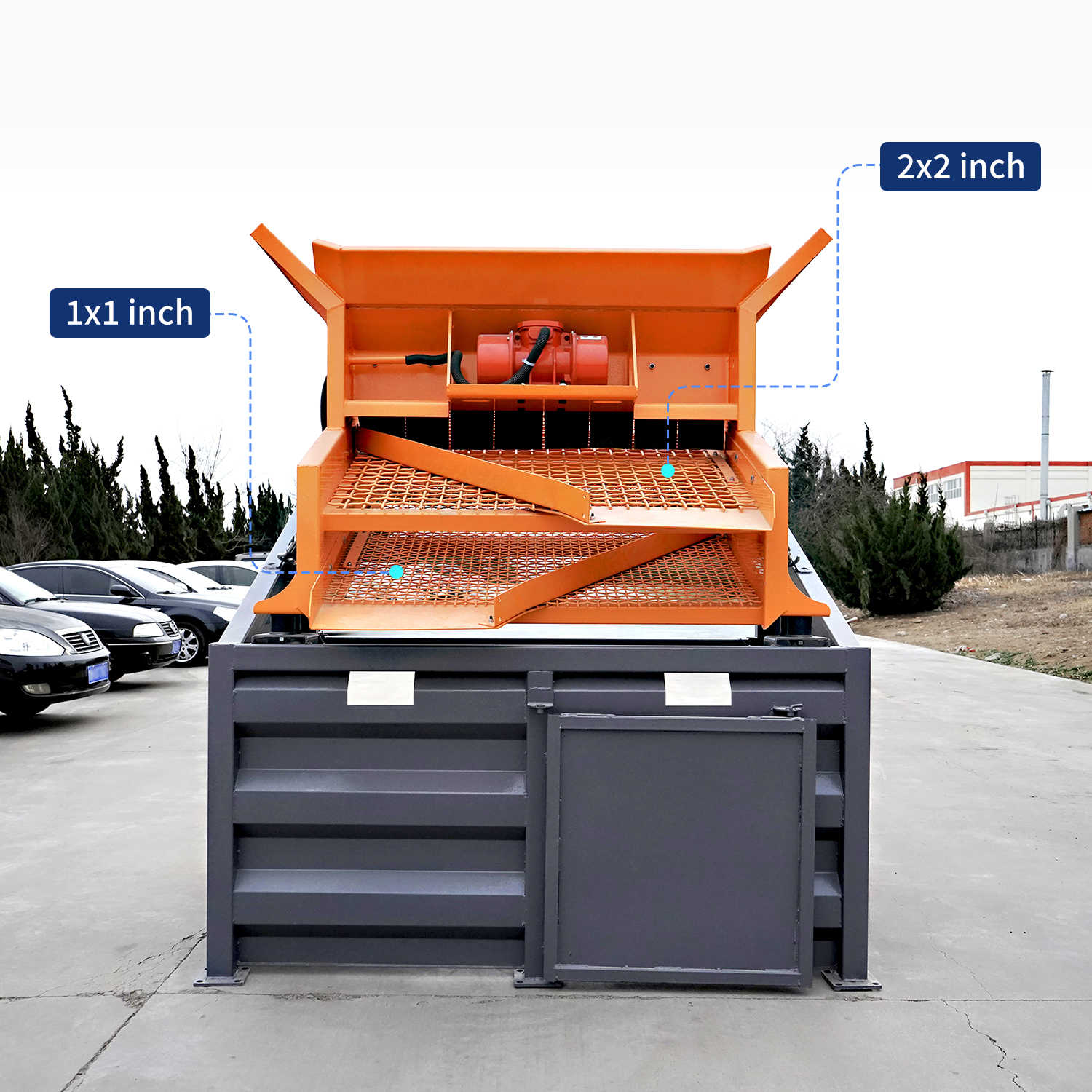

Greatbear Vibratory Screening is widely used in the construction and mineral processing industries. With this vibratory screening, you can easily split a feed of particulate materials like rocks or metal ore in several sizes into different grades of coarse and fine materials. Greatbear vibratory screening contains a 53” x 36” hopper, which is able to carry a high load of input.

Our Vibratory Screening equipment excels at sifting through materials of various sizes, separating particles with precision. From sorting aggregates to classifying minerals, it's a vital tool for optimizing your operations.



Operating Manual

Specifications



Model	MV1700/15
Dimension(LxWxH)	84.65"x74.01"x96.46"
Weight(lb)	1,362.5
Input Hopper	53"x36"
Voltage	460v
Current	2.09A
Vibration Force	1700 N
Processing Power	3 T/h
Exciting Force	KN17
Excitation Power	0.75 kW
Speed	1800 rpm, 60Hz
Insulation Class	F
Protection Class	IP65

Features

• Bright orange color, metal material for industrial usage.
• Easily split materials.
• High load input capacity.

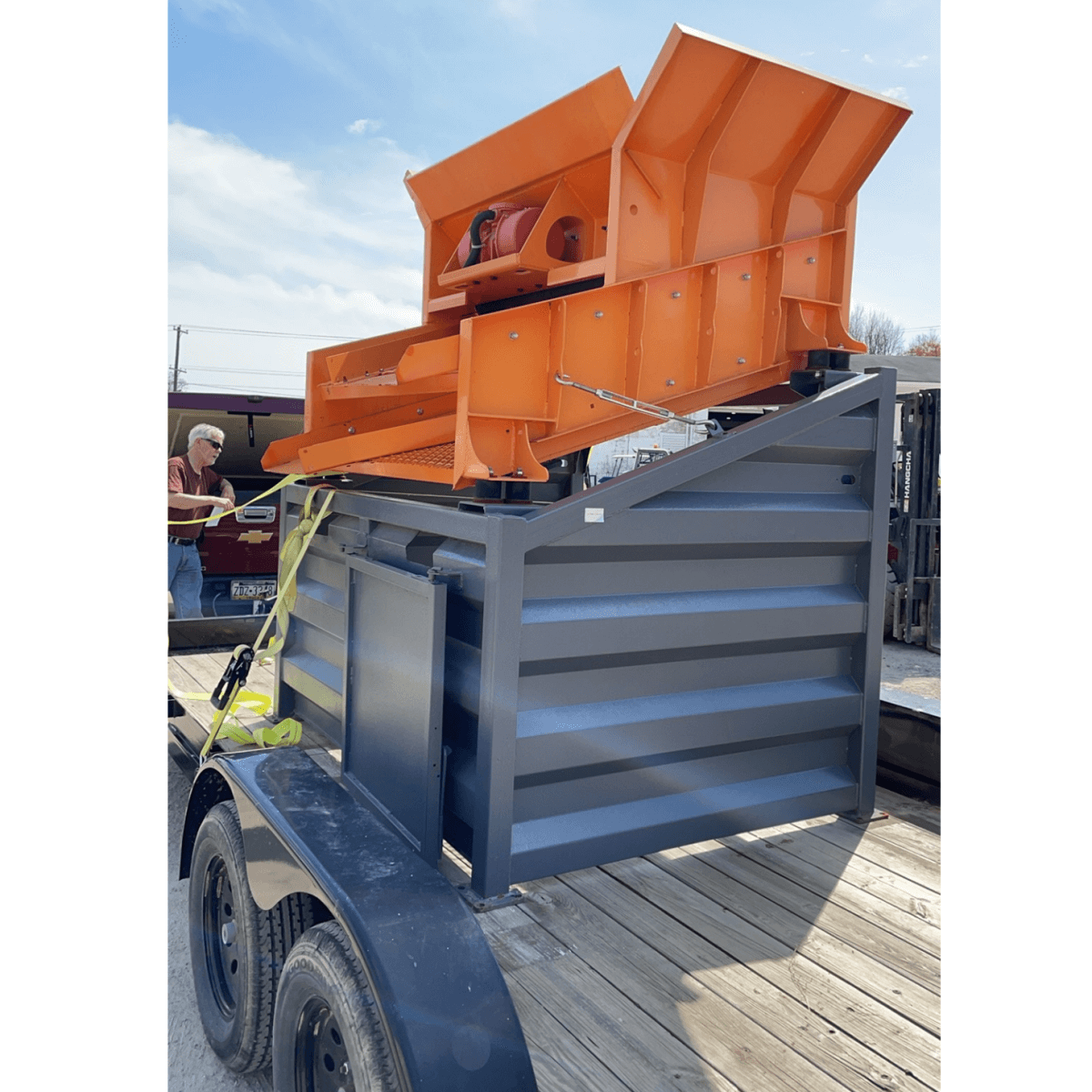

Package Size

• LxWxH (inch): 89.37x78.74x96.46
• Weight (lb): 1525.6
• A forklift or equivalent is required for unloading.
