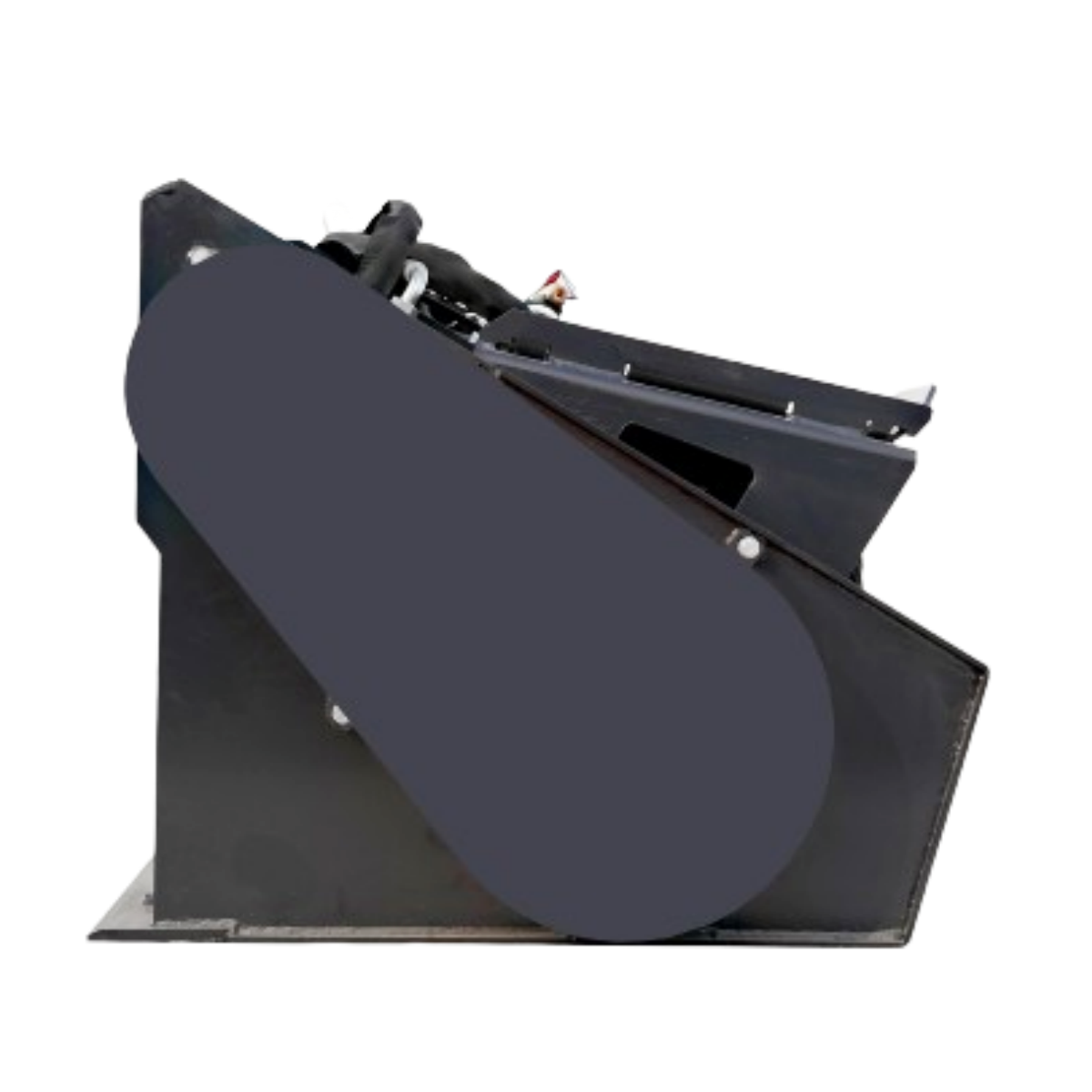

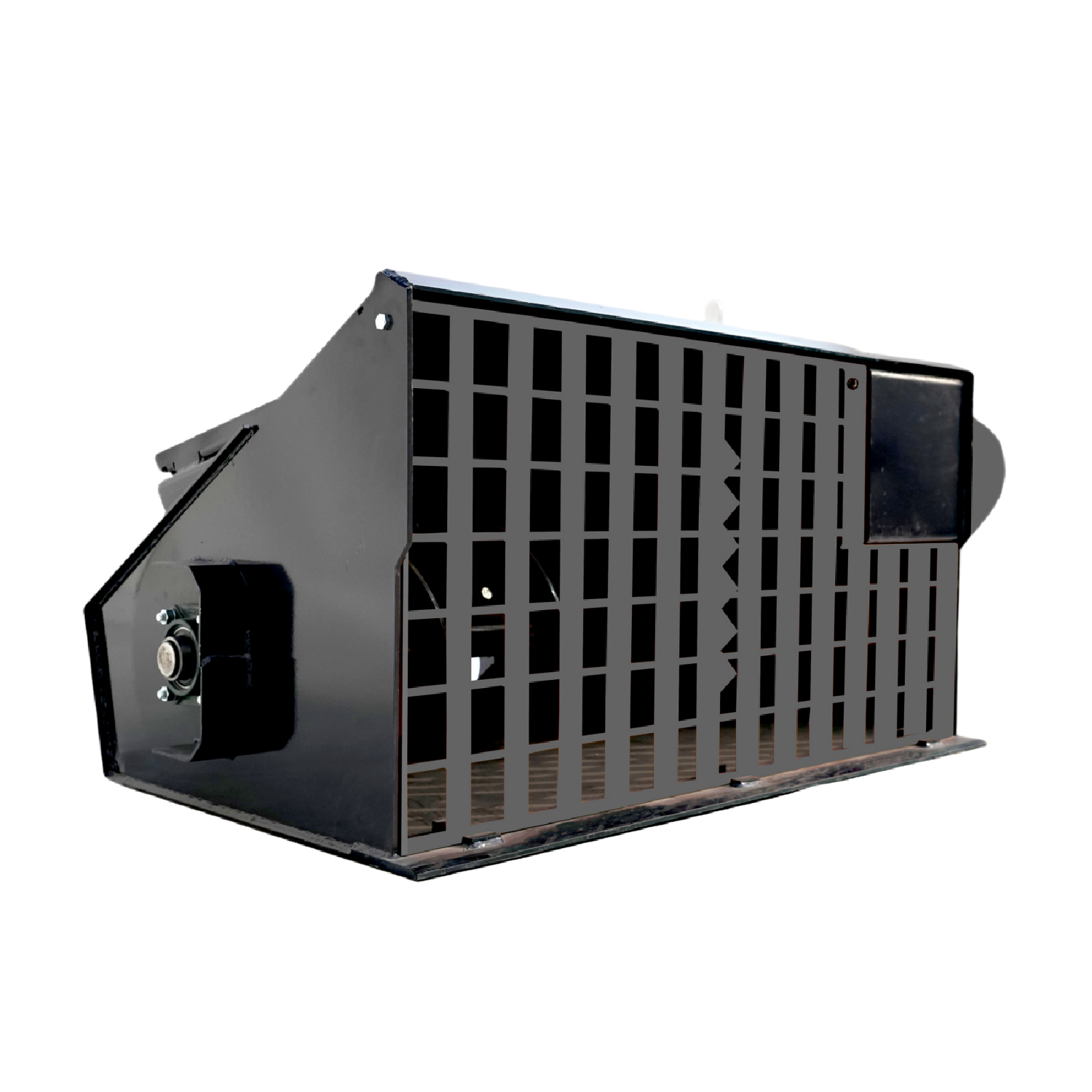

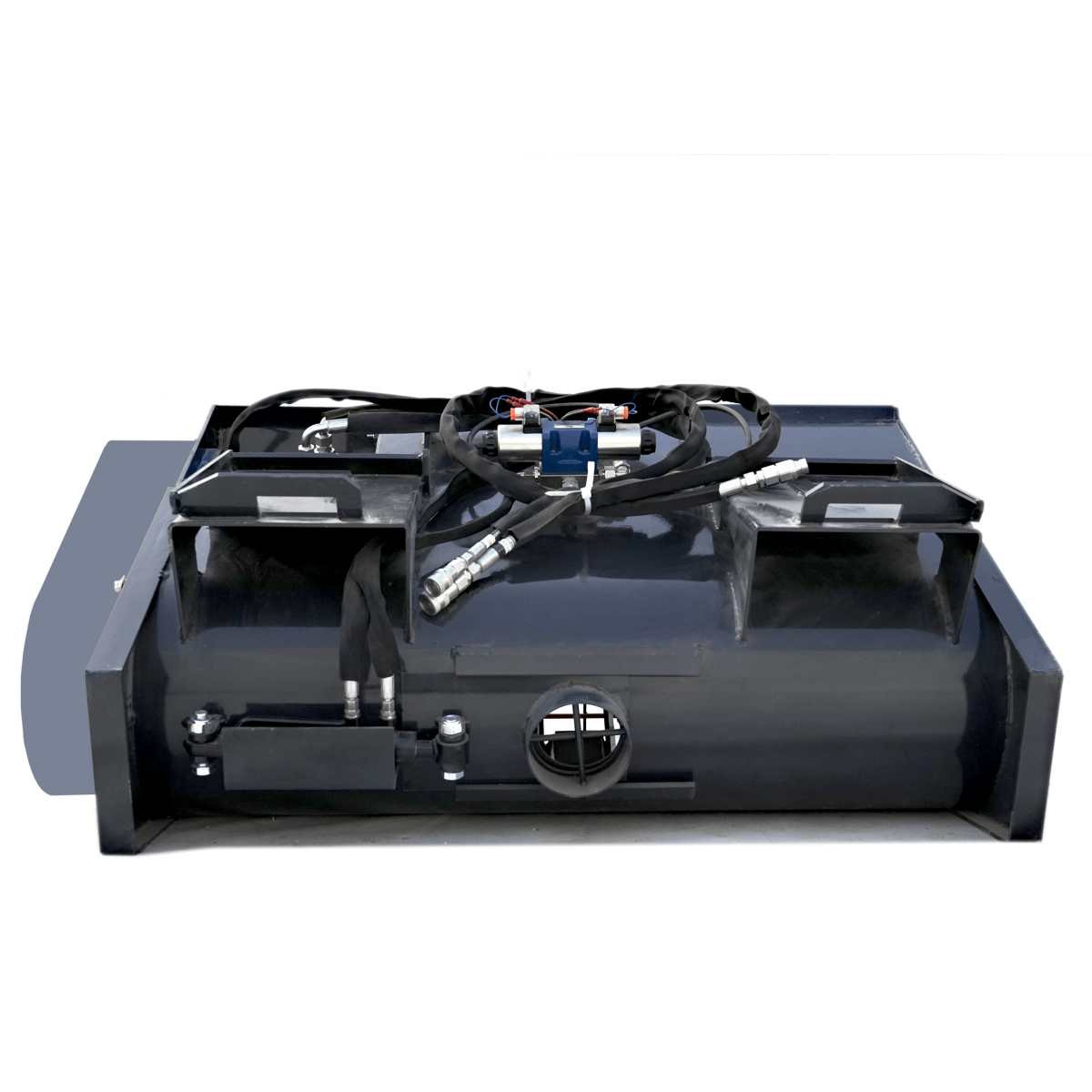

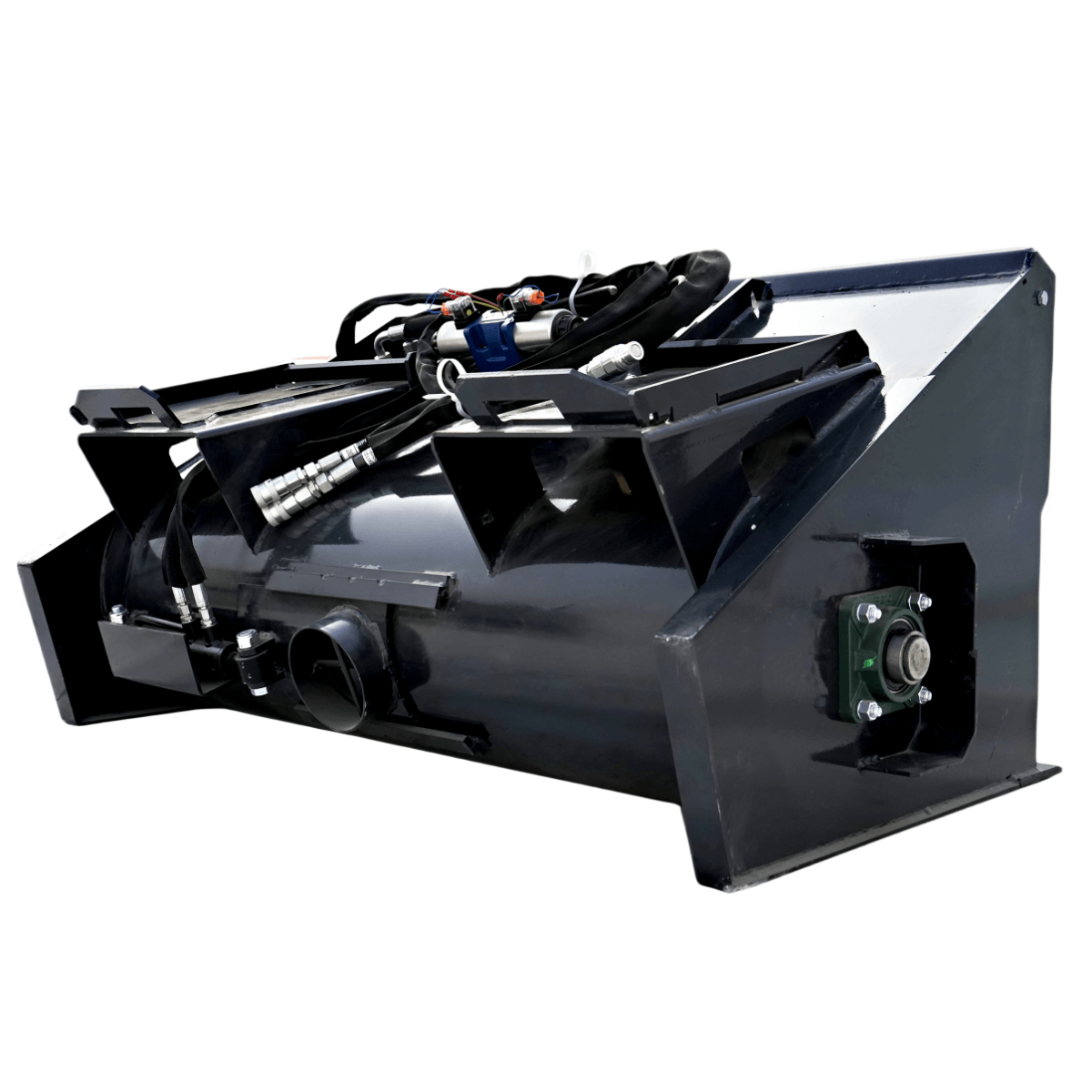

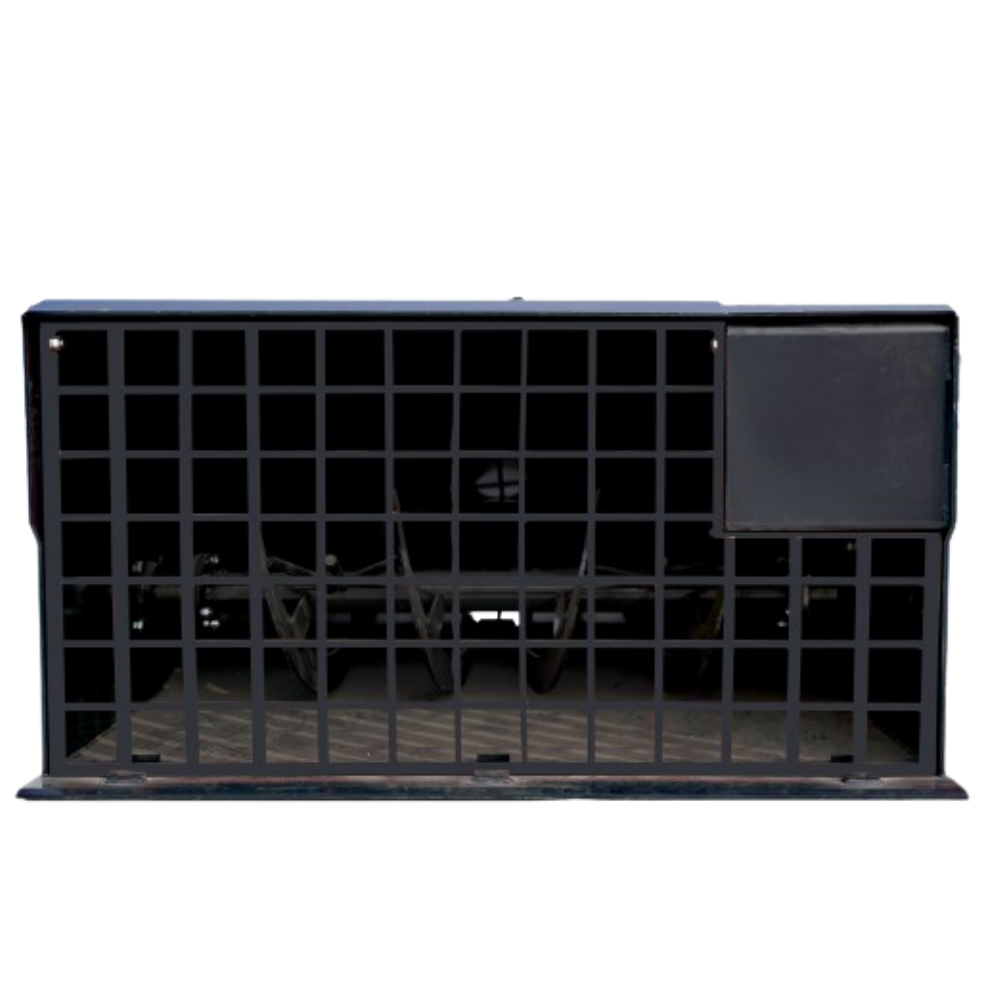

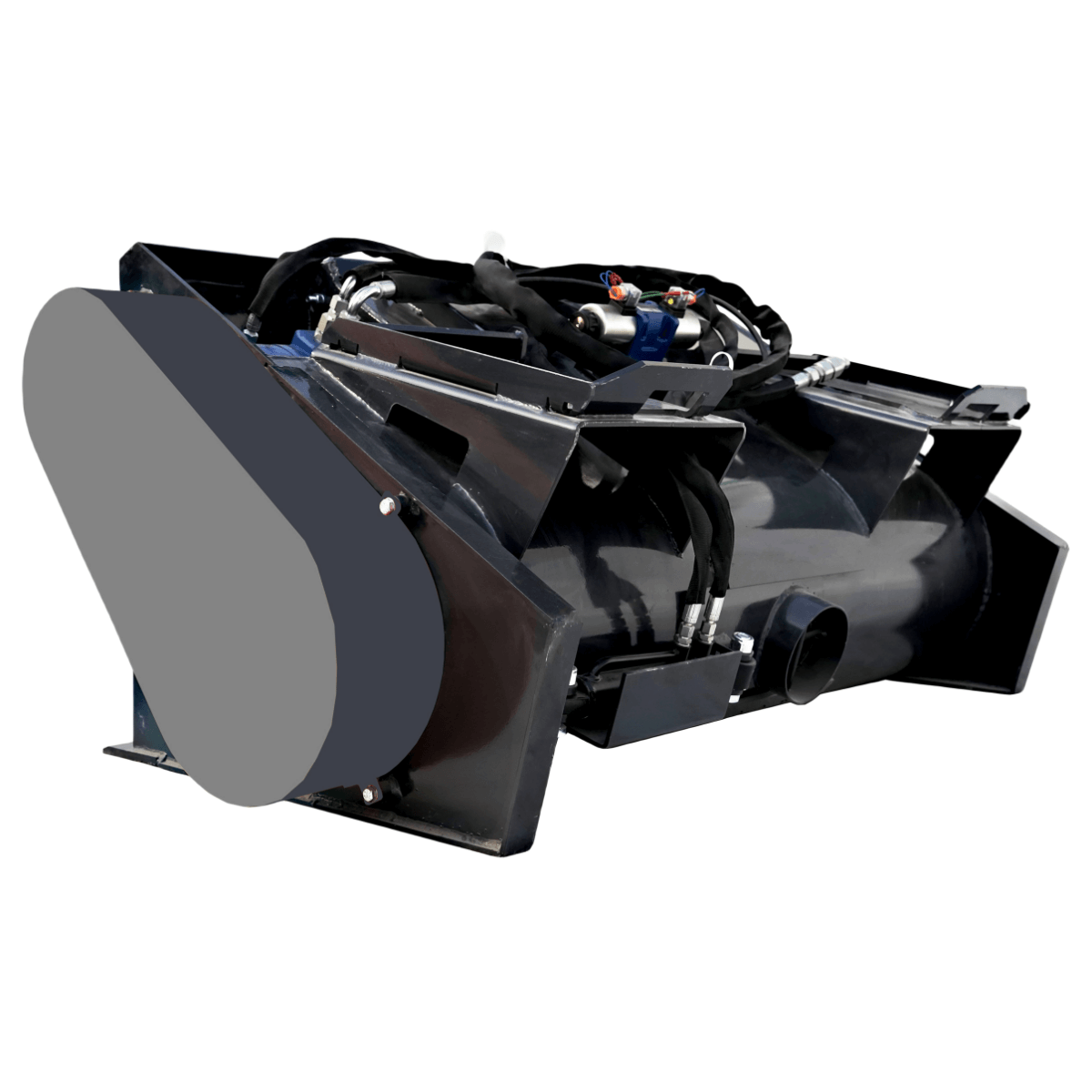

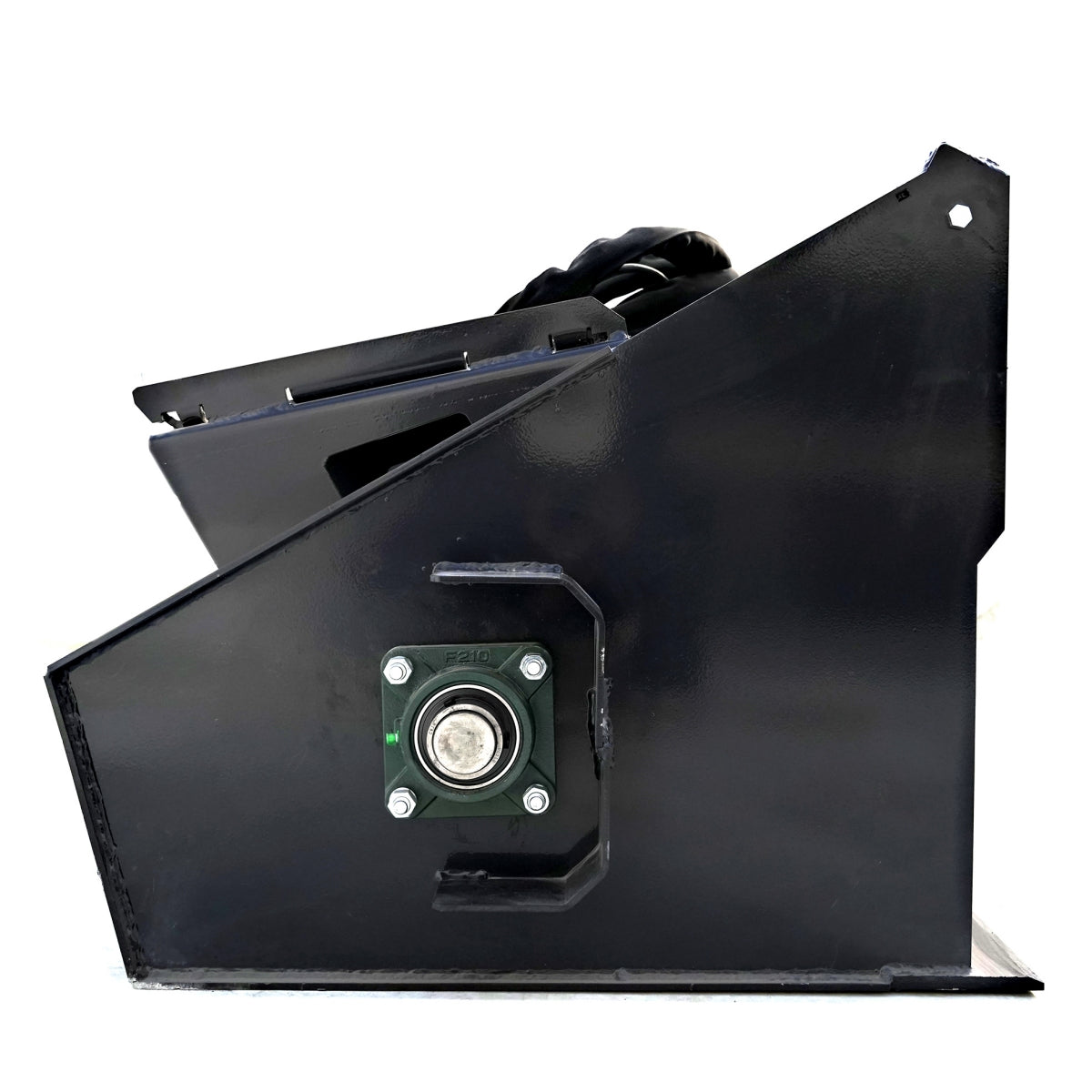

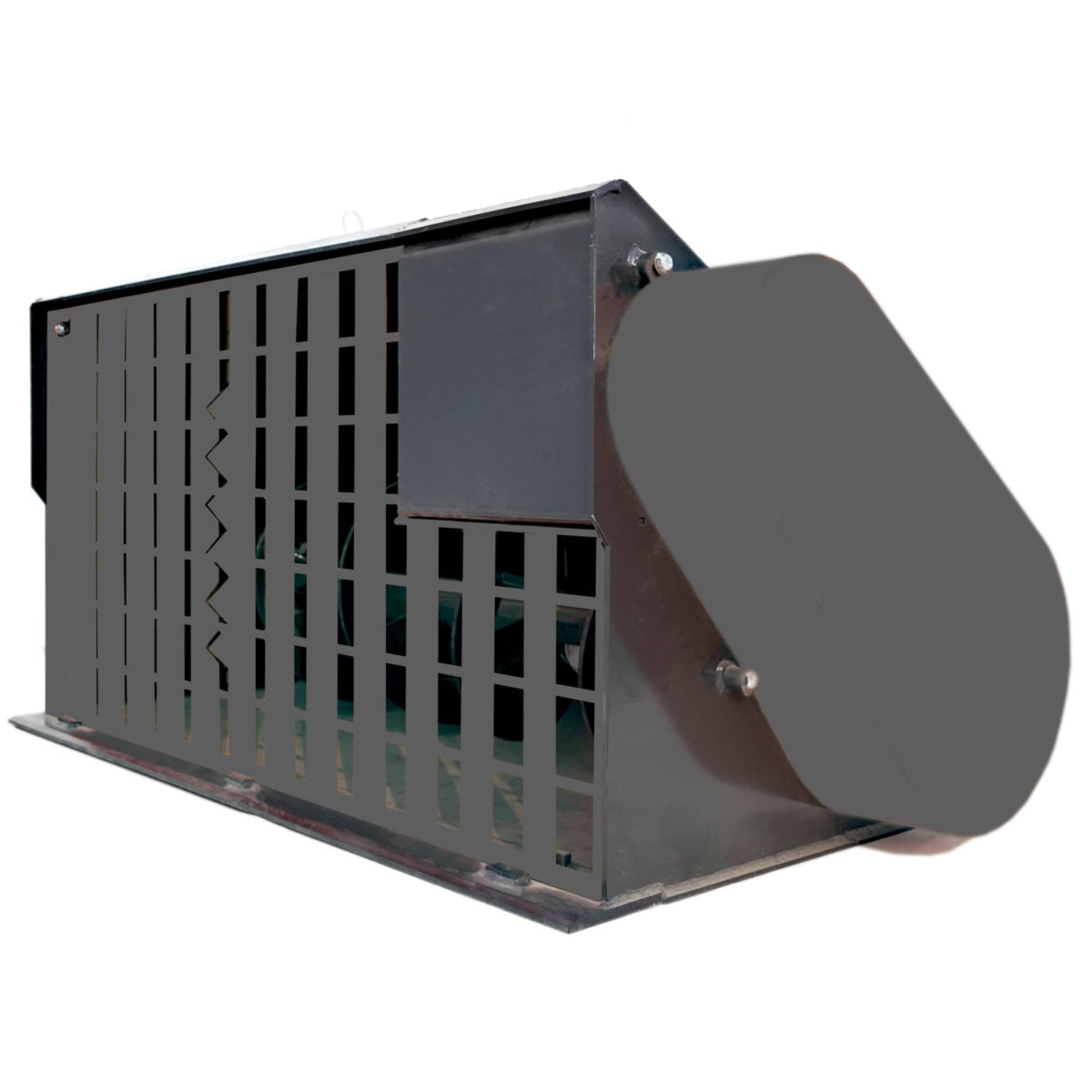

This Greatbear skid steer concrete mixer attachment is created for mixing concrete efficiently on construction sites. This active and brilliantly designed skid steer concrete mixer allows you to scoop up the material, mix it up and dispense for three purposes. The sharp horn you see on the surface allows you to split and break the concrete bag easily and save more energy. This Greatbear skid steer cement mixer is the first choice for construction job sites.

Operation Manual
Solenoid Wiring Diagram

Operation Manual



Specification



Item	unit	30
Bucket capacity	cubic foot	12.36, 349 Lt
Feed capacity	cubic foot	12.36, 349 Lt
Maximum discharge capacity	cubic foot	12.36, 349 Lt
Uniform mixing time	≤″	50
Mixing speed	r/min	50-70
Operating pressure	mpa	16-21
Operating flow	L/min	75-140
Weight	lb	1157.43
Length	inch	61.14
Width	inch	42.76
Height	inch	38.82

Features

• 12.36 cubic foot with plenty of space to mix and transport without spilling out
• Built-in bag cutter to split bag easier
• Galvanized steel and top-grade material

Package Size

• LxWxH (inch): 49x40x37
• Weight (lb): 838
• Forklift or equivalent is required for unloading
