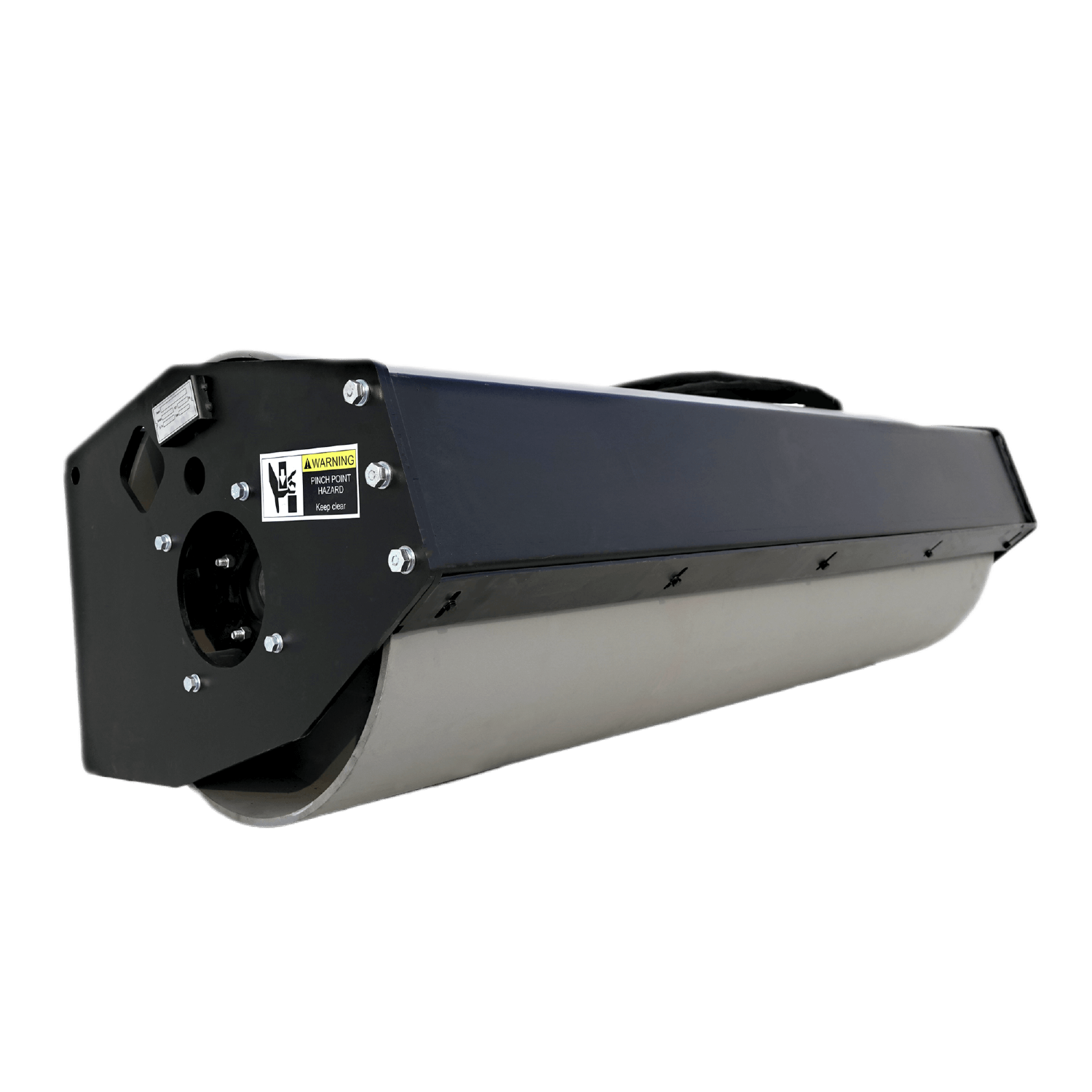

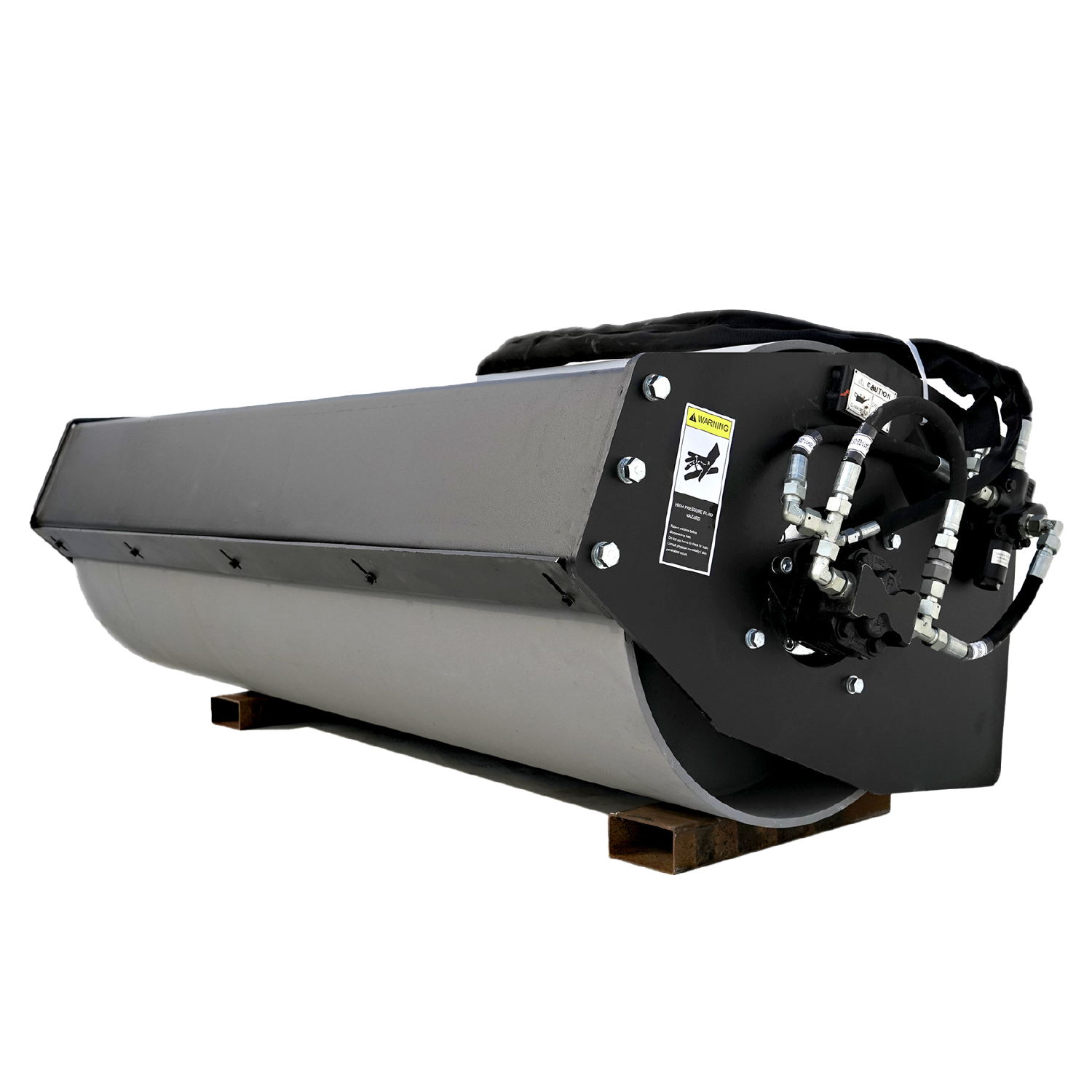

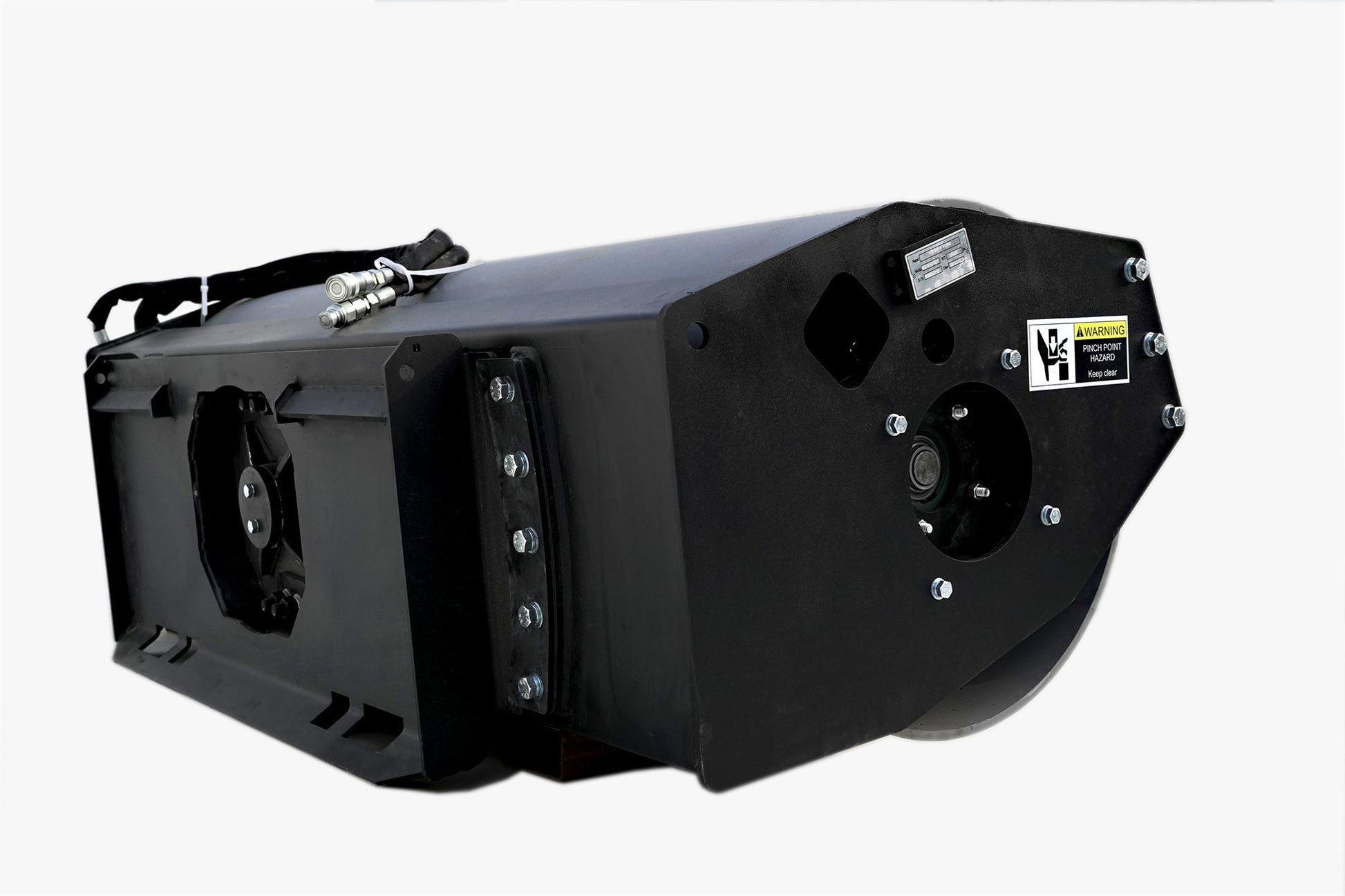

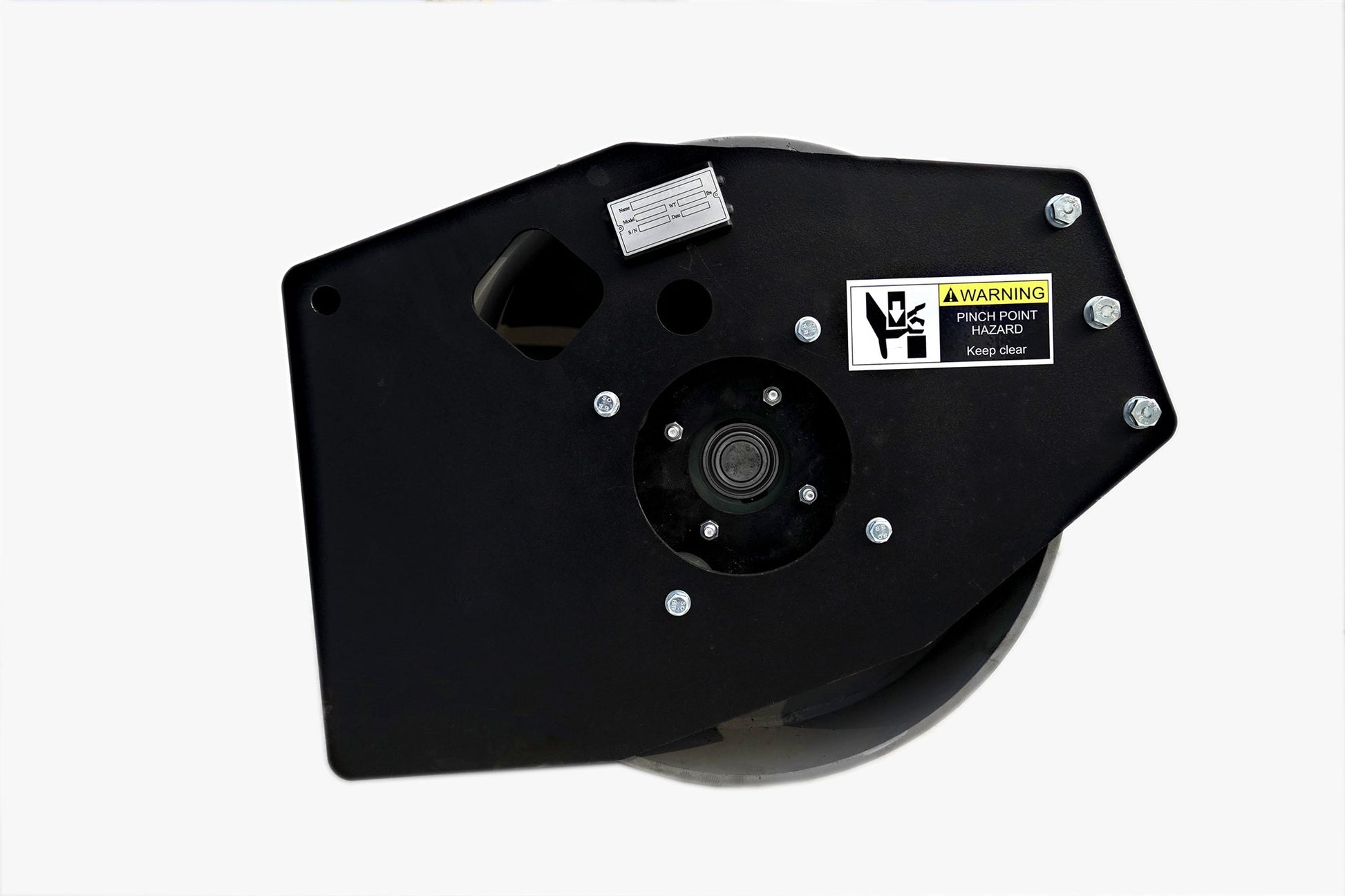

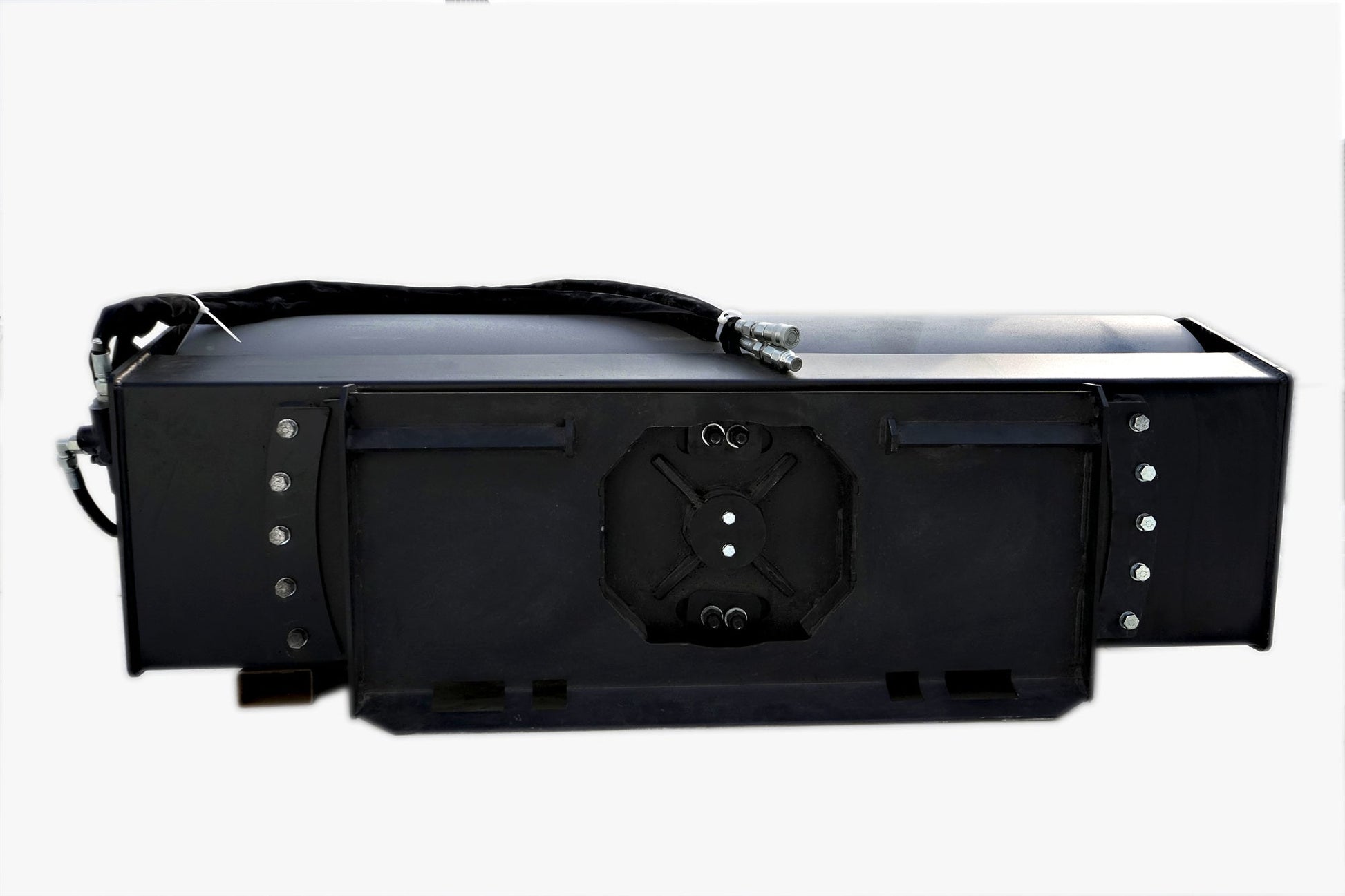

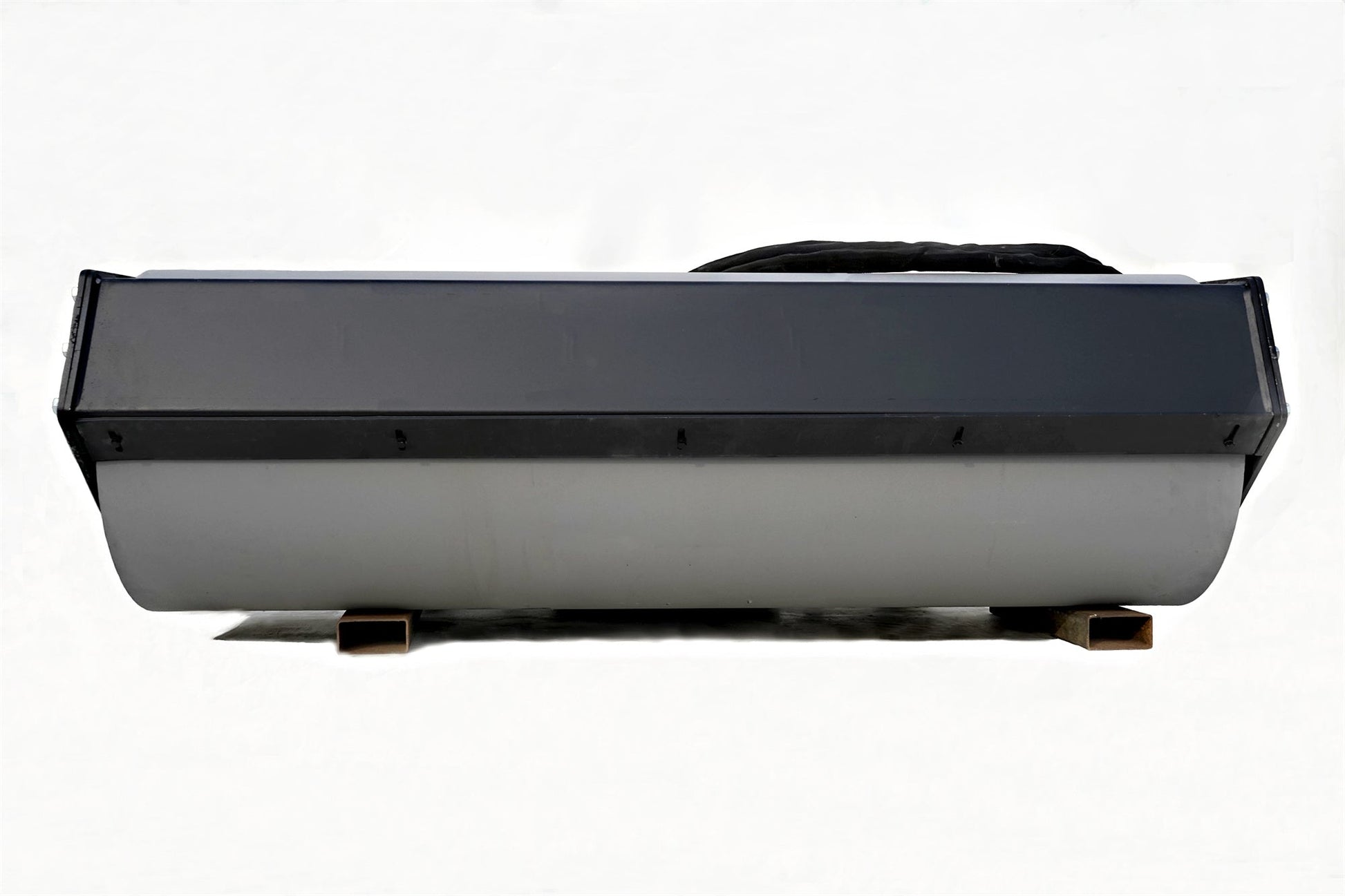

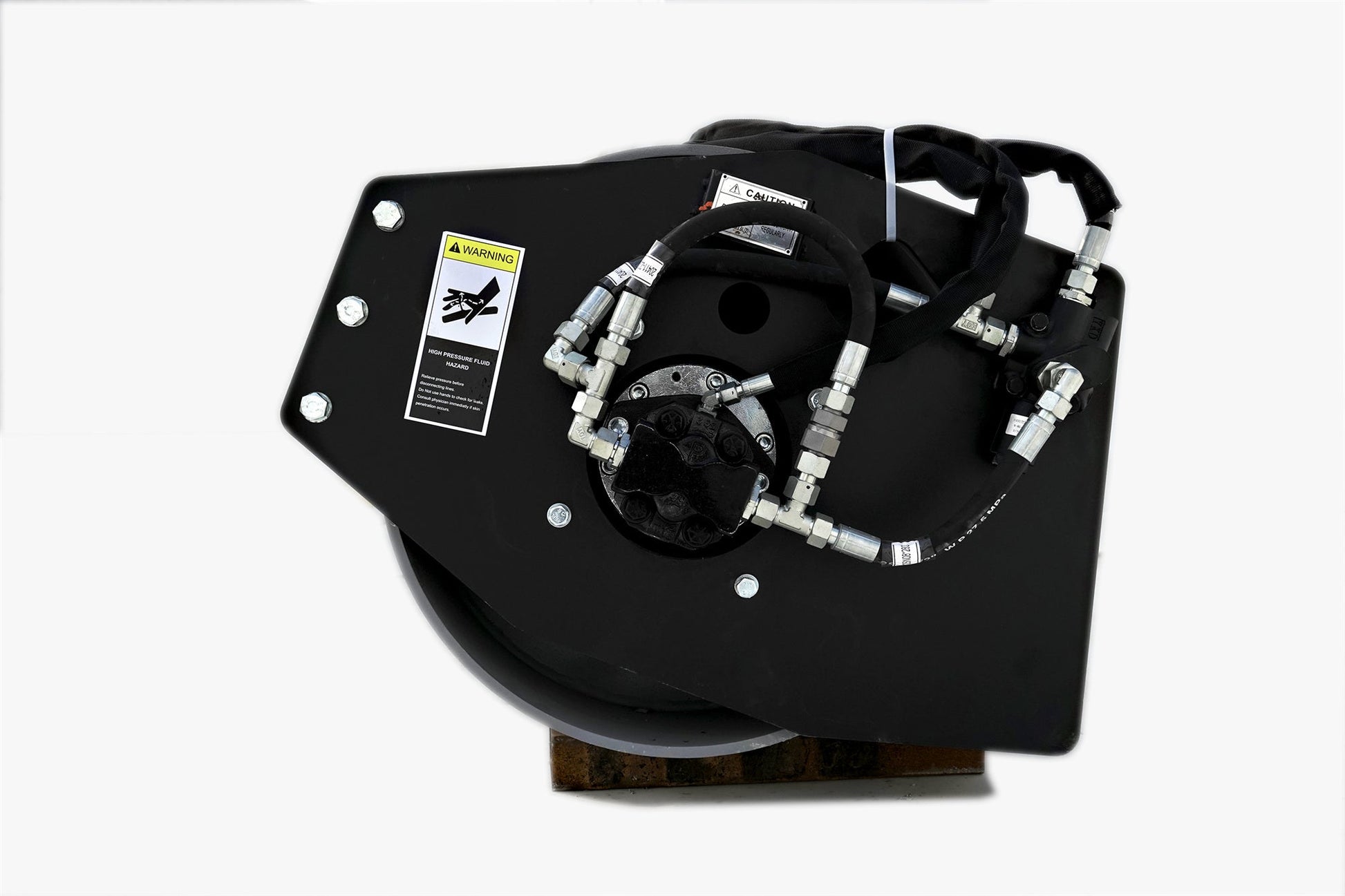

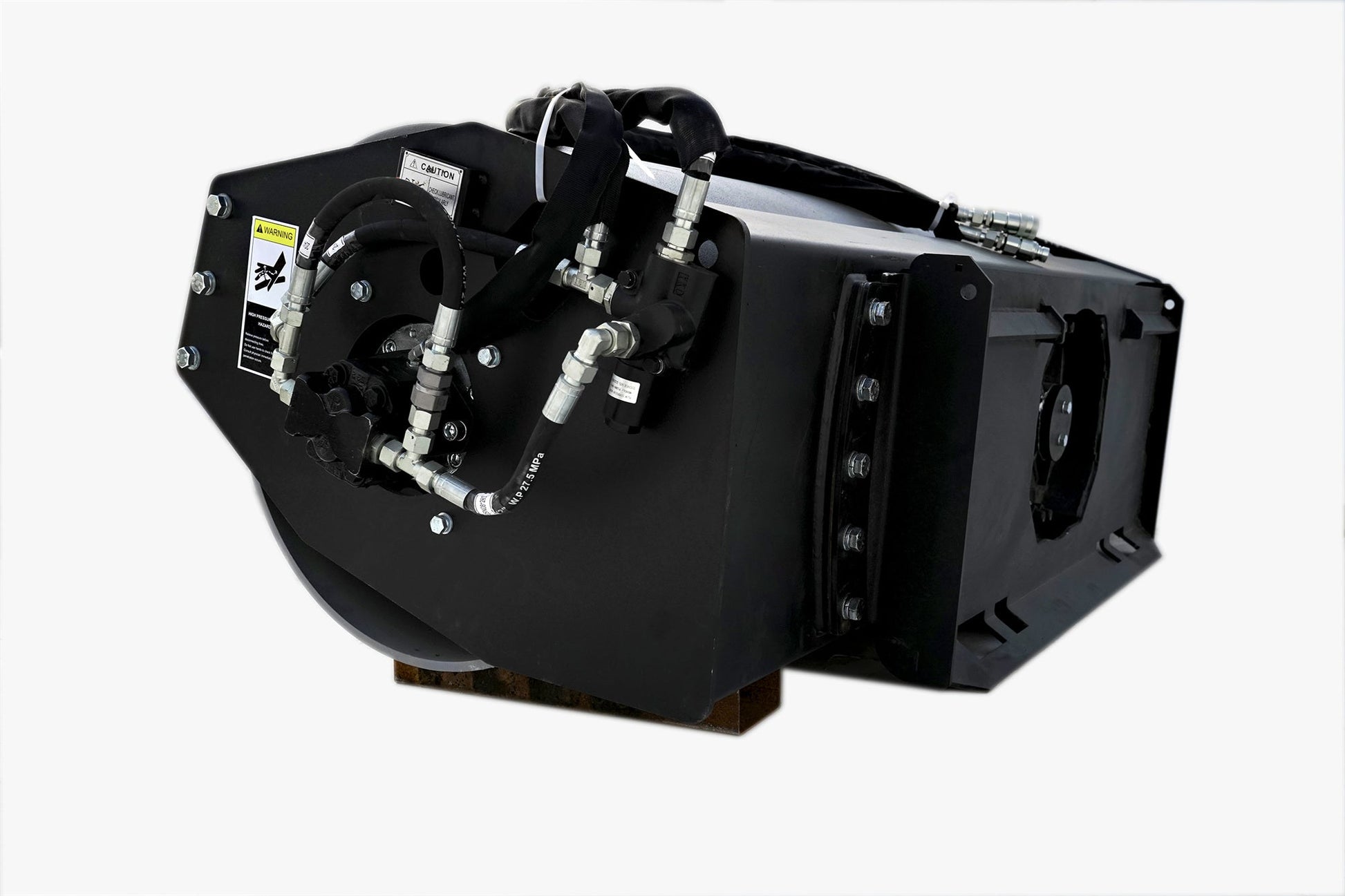

This Greatbear Skid Steer Vibratory Roller is designed to attach to skid steer to compact concrete, soil, gravel, or asphalt in the roads or foundations of landscaping, roadways, walkways, golf courses, and parking lots. This part sometimes is called roller-compactor, or road roller. This vibratory roller is taking advantage of its own heavyweight skid steer plus the attachment to compress the surface.

This product is oil lubrication, it needs to check the oil level. Through circular oil leveler to check the oil quantity (two oil levelers on the same level and perpendicular to the horizontal plane, oil should be at 70% of the oil leveler), If the oil quantity is not enough, fill through oil filler, not higher than oil leveler.

Manual

Parts diagram

Specification



	Unit	66''	72''
Drum Width	inch	66	72
Drum Diameter	inch	24	24
Vibration Force	lb	7804	8554
Vibration Frequency	Vpm	2600	2600
Weight	lb	1764	1984
Length	inch	73	79
Width	inch	35	35
Height	inch	24	24
Host Supply Flow	GPM	14	14
Color Code	RAL9005（Matte, sand texture）

• Connector specification: LSQ-FF-04 G1/2

Package Size (72’’ Greatbear Skid Steer Vibratory Roller)

• LxWxH(inch): 87x41x30
• Weight(lb): 1760
• A forklift or equivalent is required for unloading

Parts Service

• Motor
